Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSM-5005-R-1 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Name: | 50Khz Ultrasonic Metal Atomizer | Frequency: | 50Khz |
|---|---|---|---|
| Power: | 800w | Input Voltage: | 220V±10%，50/60Hz |
| Temperature Range: | 150-350℃ | Application: | Atomize Melted Metal Into Powder |
| Highlight: | 50Khz Ultrasonic Metal Atomizers,Ultrasonic Molten Tin Metal Atomizers,Metal Spray Ultrasonic Atomiser |
||

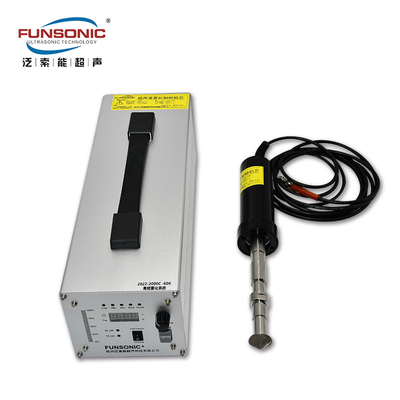

Ultrasonic Molten Tin Metal Atomizers Spray Technology 50Khz 800w
Description:
Ultrasonic tin atomization is to use the energy of ultrasonic wave to disperse the molten tin to form tiny particles with the size of several microns to more than 100 microns. This metal spray technology is widely used in industry and research and development fields, and will gradually replace the traditional pressure spraying.
Principle:
The principle of ultrasonic milling machine is that the ultrasonic driving power supply is connected to the ultrasonic transducer set inside the casing through a cable. The transducer converts the high-frequency sound waves generated by the driving power supply into high-frequency mechanical energy and works, conducting longitudinal high-frequency vibration. The frequency of high-frequency vibration is equivalent to the AC current frequency of the driving power supply. The vibration output end of the transducer is connected to the amplitude converter, and this longitudinal upward and downward vibration is transmitted from the amplitude converter to the atomization surface, generating standing waves. The lifting function of the amplitude converter is to amplify the output amplitude of the transducer to the desired degree. When the molten metal liquid passes through the atomization surface, it is broken into uniform micron sized droplets of fine mist, achieving atomization. After atomization, micrometer sized liquid droplets are thrown out of the atomization surface under the action of rotational centrifugal force and standing waves. They quickly solidify when cooled by air, forming micrometer sized metal solid particles. Collecting these particles is the required metal powder to be prepared. Moreover, during the ultrasonic atomization process, the size of micrometer level liquid droplets and fine mist can be precisely controlled, thereby accurately controlling the size of metal powder.
Parameters:
| Model | FSM-5005-R-1 |
| Name |
50Khz Ultrasonic Metal Atomizer
|
| Frequency | 50Khz |
| Power | 800w |
| Input Voltage | 220V±10%,50/60Hz |
| Tool Head Materials | Titanium Alloy |
| Temperature Range | 150-350℃ |
| Application | atomize melted metal into powder |
Application:
Ultrasonic metal powder production uses ultrasonic waves to atomize melted metal into powder. The solder powder (such as indium powder) prepared by ultrasonic atomization process has good sphericity, narrow particle size distribution, and low oxygen content. The method of ultrasonic atomization can be used to produce metal powder. When the ultrasonic power generator excites the ultrasonic transducer, the ultrasonic tool head that serves as the transducer load vibrates, and the melted metal solution is atomized through ultrasonic vibration. Then, the droplets of metal particles cool and solidify in the air before falling into the powder collection cylinder and collecting to form metal powder. The atomization of various molten metals is commonly used to prepare metal powder or solder powder. Preparation of metal powders such as tin, indium, bismuth, etc.
Ultrasonic Molten Tin Metal Atomizers Spray Technology 50Khz 800w
