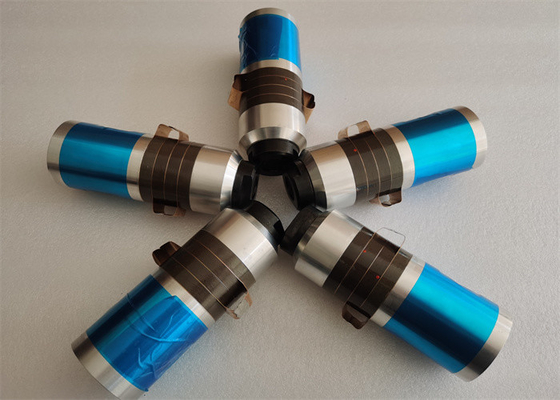

High Power 2600w Ultrasonic 15Khz Converter With Grey Ceramic

High Power 2600w Ultrasonic 15Khz Konverter with Grey Ceramic

Description:

Ultrasonic transducer is a device that converts electric energy and acoustic energy with piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic element, a front and rear metal cover plate, a pre-stressed screw, an electrode piece, and an insulating tube. Ultrasonic transducer is applied to almost all ultrasonic equipment. QRsonic ultrasonic equipment is the source manufacturer of ultrasonic titanium alloy transducer and core components.

Specifications:

Parameters:

What should I do if the transducer is not working well?

Common problems in trials are wafer cracking, weakness, easy overload, electrode pad ignition, electrode chip cracking, severe heat generation, strange noise, leakage wave, wafer misalignment, etc.; the reasons can be classified into three categories:

1. There is a problem with the customer's drive power or mold and assembly.

In this case, we recommend that customers actively find the cause or communicate with our technical staff to improve as soon as possible. Even if you don't use our company's products, it is definitely beneficial and harmless to improve your own problems.

2. There is a problem with the transducer and the horn.

This situation is also certain to happen, but the possibility of discovery is small.

3. Both products have no problems, but they do not match.

This is the most common situation, that is, the customer's drive power is good, the transducer is good, the assembly is normal, but the parts are not

Match. The main parameters causing the mismatch are the frequency and capacitance of the transducer.

High Power 2600w Ultrasonic 15Khz Konverter with Grey Ceramic
