| Products Name: | Ultrasonic Cutting Transducer | Frequency: | 40 Khz |
|---|---|---|---|
| Output Power: | 500 Watt | Joint Bolt: | M10 |
| Ceramic Disc Diameter: | 30mm | Ceramic Discs: | PZT8 |
| Capacitance: | 5.1-7.5nf | Amplitude: | 4um |
| Highlight: | 500w Ultrasonic Transducer 40khz,500w 40Khz Transducer,Ultra Cutting Ultrasonic Transducer 40khz |
||

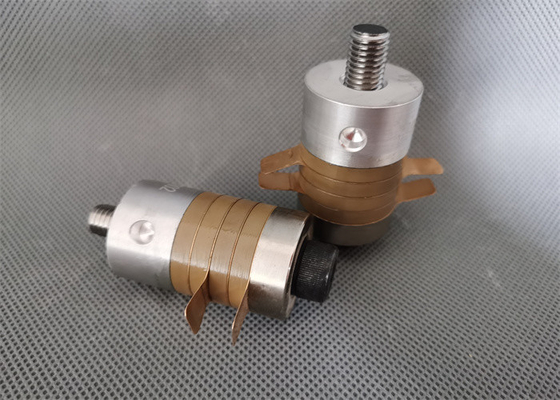

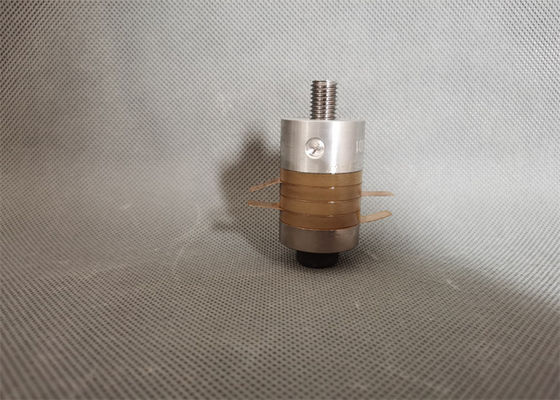

500w Ultra Cutting 40Khz Transducer with Capacitor Range from 5100pf to 7500pf
Description:
Ultrasonic transducers are currently mainly used in ultrasonic mask machines, ultrasonic plastic welding machines, ultrasonic metal welding machines, ultrasonic cleaning machines, gas cameras, trichlorine machines and other equipment.
The structure of the ultrasonic transducer includes the shell degree, the matching layer that is the acoustic window, the piezoelectric ceramic disc transducer, the backing, and the lead-out cable. The piezoelectric wafer is an important part of the transducer. The vibration of the piezoelectric wafer The frequency is the operating frequency of the device, and the frequency mainly depends on the thickness of the wafer and the propagation speed of the ultrasonic wave in the wafer material.
Specifications:
| Model | QR-3040-4BZ |
| Frequency | 40khz |
| Output power | 500 watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 5.1-7.5nf |
| Amplitude | 4 um |
| Application | Plastic welding machine |
Parameters:
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 7015-4BZ | M20 X 1.5 | 70 | 4 | 15 | 12500-14000 | 17000-19000 | 2600 | |
| 6015-4BZ | M20 X 1.5 | 60 | 4 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 |
| 6015-6BZ | M20 X 1.5 | 60 | 6 | 15 | 14000-16000 | 19500-21000 | 2600 | |
| 5015-4BZ | M18 X 1.5 | 50 | 4 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 |
| 4015-4BZ | M16 X 1 | 40 | 4 | 15 | 10000-11000 | 10500-11500 | 700 | |
| 5520-4BZ | M18 X 1 | 55 | 4 | 20 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 |
| 5020-6BZ | M18 X 1.5 | 50 | 6 | 20 | 18500-20000 | 22500-25000 | 2000 | |
| 5020-4BZ | M18 X 1.5 | 50 | 4 | 20 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 |
| 5020-2BZ | M18 X 1.5 | 50 | 2 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 |
| 5020-4CZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 1500 | ||
| 5020-4BL | M18 X 1.5 | 50 | 4 | 20 | 11000-12500 | 1500 | ||
| 4020-4BZ | 1/2-20UNF | 40 | 4 | 20 | 9000-10000 | 9500-11000 | 900 | |
| 4020-2BZ | 1/2-20UNF | 40 | 2 | 20 | 4800-5500 | 500 | ||
| 3820-4BZ | 1/2-20UNF | 38 | 4 | 20 | 6500-7500 | 800 | ||
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 |
||
