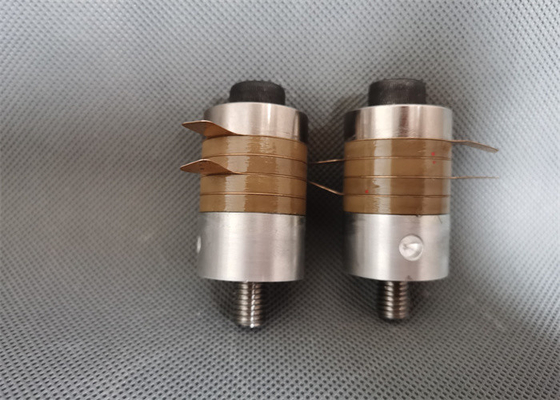

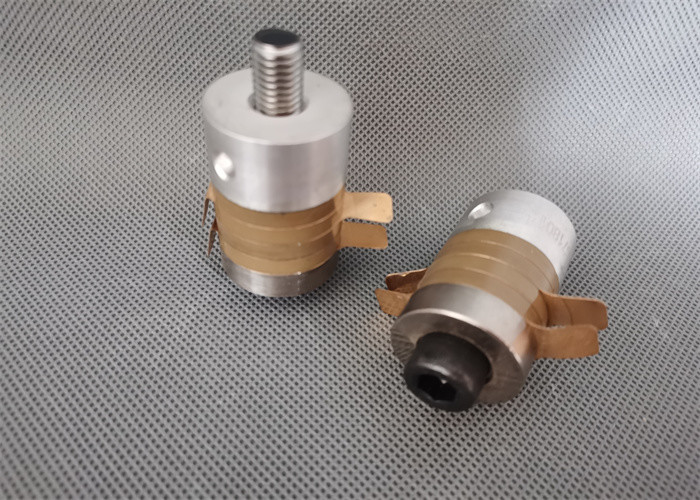

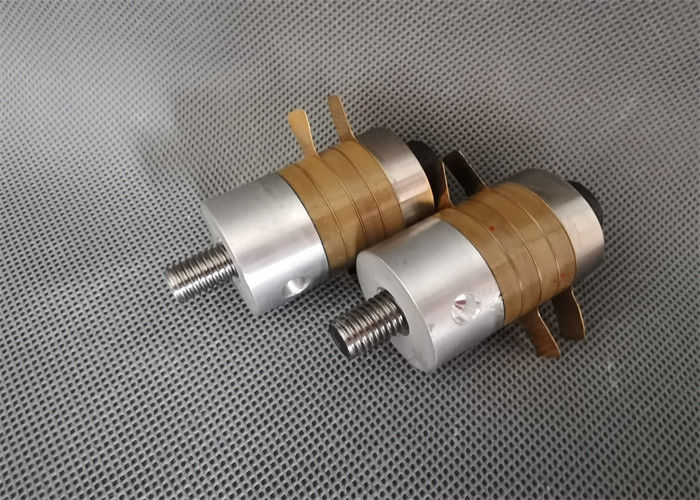

High Frequency 40Khz Ultrasound Piezoelectric Transducer For Cutting Device

High Frequency 40Khz Ultrasound Piezoelectric Transducer for Cutting Device

Description:

Ultrasonic transducer is an energy converter that converts the input electric power into mechanical power. It is the heart of the ultrasonic welding machine. It can better play the role of the ultrasonic welding machine if equipped with appropriate ultrasonic transducer

Specifications:

Parameters:

Ultrasonic transducer parts assembly precautions:

The main parts of the ultrasonic vibration system, such as transducers, horns, tool heads, etc., are connected by a central bolt.

1. Check that the contact surface should be smooth and free of scratches. If there are any scratches, use a metallographic paper with a number of zero or more to lightly polish. It is required to smooth the defect without damaging the flatness of the contact surface.

2. Clean the screws, screw holes and contact surfaces with a volatile, non-corrosive detergent.

3. Thoroughly clean the screws, screw holes and contact surfaces.

4. All connecting screw holes should be perpendicular to the contact surface.

5. Apply a thin layer of butter or Vaseline to the contact surface before tightening. Do not apply to the connecting screws and screw holes.

6. Carefully tighten the two parts. Adjust the appropriate tightening torque according to the specifications of the connecting screws. When possible, tighten it properly.

7. If you loosen the joint surface again, you should not see any scars.

8. The amplitude of the vibration system is evenly distributed by hand, no strange sound, no local severe fever.

9. After re-opening the joint surface after working for a period of time, there should be no signs of oxidation or ablation. Otherwise, the contact here is not good, and the ultrasonic energy is seriously lost here.

High Frequency 40Khz Ultrasound Piezoelectric Transducer for Cutting Device
