Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-6015-6BD |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Pizoelectric Transducer | Frequency: | 15 Khz |
|---|---|---|---|
| Output Power: | 3600 Watt | Joint Bolt: | 1/2-20UNF |
| Ceramic Disc Diameter: | PZT8 | Qty Of Ceramic Discs: | 6pcs |
| Capacitance: | 19-22.5nf | Application: | Ultrasonic Plastic Welding Machine |
| Highlight: | Ultrasonic Trumpet Welding Transducer 15Khz,Ultrasonic Trumpet Type Transducer,2600w Ultrasonic Trumpet Welding Transducer |
||

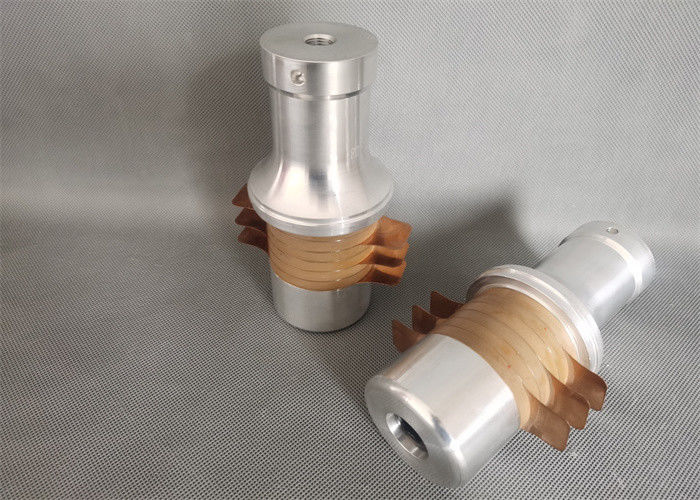

15Khz 2600w Ultrasonic Trumpet Type Transducer Branson System for Plastic Welding Machine
Description:
QRsonic adopts QM value, technical strength, low strong field loss, high power density, low mechanical dielectric loss, high piezoelectric coupling coefficient, stable performance piezoelectric ceramic sheet, through the precise structure design, and the parameters of the ceramic sheet are highly consistent. Accurate, corrosion-resistant, non-rusting, 62 phosphor copper with excellent conductivity, assembled into an ultrasonic transducer with strong stability and long service life.
Specifications:
| Model | QR-6015-6BD |
| Frequency | 15 khz |
| Output power | 3600 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 60mm |
| Qty of ceramic discs | 6pcs |
| Capacitance | 19-22.5nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Parameters:
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
| Yellow | Grey | Black | |||||
| 6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
| 6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
| 7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
| 4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
| 4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
| 5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
| 5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
| 5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
| 3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
| 5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
| 3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
| 3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
| 3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
| 3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
| 3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
| 1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
| 1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |
Manufacturing process of ultrasonic transducer:
The transducer is composed of a shell, a matching layer, a piezoelectric ceramic disk transducer, a backing, an outgoing cable and a Cymbal array receiver. Piezoelectric ceramic disk transducer is made of PZT-5 piezoelectric material with thickness direction polarization. The Cymbal array receiver consists of 8~16 Cymbal transducers, two metal rings and rubber washers.
1. Dry with hot air gun
2. First swing the electrode
3. Ceramics, electrode pieces, ceramics
4. Rear cover and screws
5. Positioning
6. Afterburner
7. Gluing
8. Place the oven
9. Test with testing machine
10. Joint grouting
11. Retest before packing
