Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W30H |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Spot Welder | Frequency: | 30Khz |
|---|---|---|---|
| Power: | 800w | Generator: | Digital Power Supply |
| Welding Head: | Titanium | Application: | Various Plastic Materials |
| Highlight: | 30Khz Ultrasound Sport Welder,High Frequency Vibration Ultrasound Sport Welder,Non Woven Fabric Ultrasound Sport Welder |
||

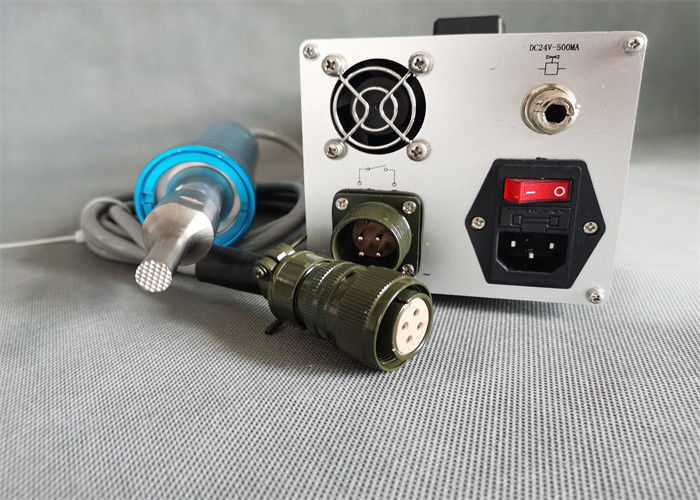

High Frequency Vibration 30Khz Ultrasound Sport Welder for Non-woven Fabric
Description:
The ultrasonic ear band spot welder acts on non-woven fabric raw materials through the principle of ultrasonic operation, generating tens of thousands of high-frequency vibrations per second, so as to achieve a certain amplitude of high-frequency vibration, generating local high temperature. Due to the poor thermal conductivity of non-woven fabric, the temperature can not be distributed in time for a while, and it gathers in the welding area, causing the contact surface of ear band and mask to melt rapidly. After a certain amount of pressure is applied, it will be integrated. When the ultrasonic wave stops acting, let the pressure last for a few seconds to solidify and form a solid molecular chain to achieve the purpose of welding, and the strength is close to the strength of raw materials.
Specifications:
| Item No | QR-W30H |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 30KHZ |
| Voltage | 220V or 110V |
| welding head |
Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type | ||||||
|
Frequency |
35 | 28 | 28 | 30 | 20 | 28 | 35 | 30 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — | ||||
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC |
PC, |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding | |||||||
Advantage:
1. Fast, economical, efficient and environmentally friendly welding process, especially in the operation of thermoplastic parts and the synthesis of other workpieces, which highlights the characteristics of work efficiency. At present, the principle of ultrasonic welding machine is widely used in plastic products and plastic materials. The synthesis operation of metal parts and metal materials, as well as some other materials and industries, process operations, etc.
2. It surpasses the old-fashioned solvent welding operation, flux welding, adhesive bonding and other flux and flux fusion synthesis process technologies. It not only has the advantage of saving, but also has no operation pollution because of the advanced ultrasonic principle technology, so it is very environmentally friendly. The welding effect is comparable to the material itself, the welding quality is solid, the appearance of the welding operation is beautiful, and the sealing effect of the welding operation is incomparable with the old technology.
Do not add any adhesives, fillers or solvents, and do not consume a lot of heat. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency.
High Frequency Vibration 30Khz Ultrasound Sport Welder for Non-woven Fabric
