Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-FC40H |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Rubber Cutter | Frequency: | 40KHZ |
|---|---|---|---|
| Power: | 800W | Generator: | Digital Power Supply |
| Voltage: | 220V Or 110V | Cutter Dimension: | 82.5mm |
| Weight Of Blade: | 1.5kgs | Gross Weight: | 8kgs |
| Highlight: | Ultrasonic Food Cutter 40Khz,Titanium Alloy Blade Ultrasonic Food Cutter,Ultrasonic Food Cutter Handheld |
||

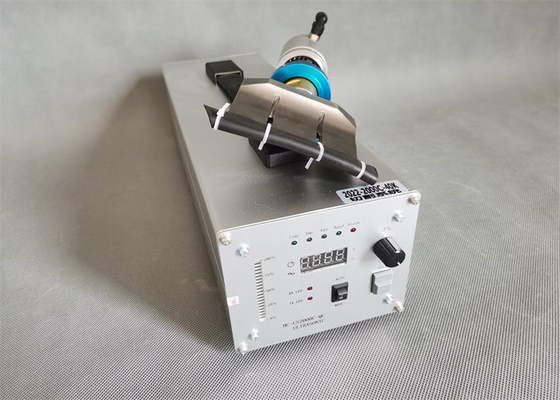

40Khz Ultrasonic Handheld Food Cutter with Titanium Alloy Blade with Digital Driver
Description:
40Khz food ultrasonic cutting machine is a type of equipment that uses ultrasonic energy for cutting processing. The food ultrasonic cutting machine is a special application of the ultrasonic cutting machine. It is a kind of equipment that uses ultrasonic energy to cut and process. Its biggest feature is that the cutting does not use the cutting edge. Or, without the traditional edge.
Typical applications include cheese cutting, cutting of cake and dessert products, cutting of confectionery products, meat cutting, sandwich and package cutting.
Specifications:
| Item No | QR-FC40H |
| Power | 800W |
| Generator | Digital Power Supply |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Cutter Dimension | 82.5mm |
| Weight of blade | 1.5kgs |
| Gross weight | 8Kgs |
Comparison between Traditional Cutter and Ultrasonic Cutter:
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Advantages:
1. High stability: The ultrasonic generator generates electromagnetic vibration when it is working, and converts it into mechanical oscillation and transmits it to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is needed, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: the cutting knife is connected to the ultrasonic generator, the generator is connected to 220V mains, and the switch can be cut to support hand-held and machine-mounted cutting.
