Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-FC40H |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Rubber Cutting Machine | Frequency: | 40KHZ |
|---|---|---|---|
| Power: | 800W | Generator: | Digital Power Supply |
| Voltage: | 220V Or 110V | Cutter Dimension: | 82.5mm |
| Weight Of Blade: | 1.5kgs | Gross Weight: | 8kgs |
| Highlight: | 800W Ultrasonic Rubber Cutter,Digital Ultrasonic Rubber Cutter,Titanium Blade Ultrasonic Rubber Cutter |
||

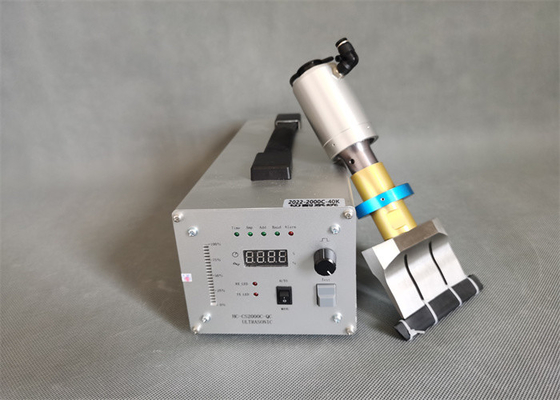

800W Ultra Rubber Cutter 40Khz With Titanium Blade with Digital Cutting System
Description:
40Khz rubber ultrasonic cutting machine is a type of equipment that uses ultrasonic energy for cutting processing. The rubber ultrasonic cutting machine is a special application of the ultrasonic cutting machine. It is a kind of equipment that uses ultrasonic energy to cut and process. Its biggest feature is that the cutting does not use the cutting edge. Or, without the traditional edge.
On the contrary, Conventional cutting uses a sharp-edged tool to press against the material being cut. This pressure is concentrated at the cutting edge, and the pressure is very large, exceeding the shear strength of the material being cut. The molecular combination of the material is pulled apart and cut. Since the material is pulled hard by the strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself must withstand relatively high pressure. For soft, flexible materials, the cutting efficiency is not high.
Specifications:
| Item No | QR-FC40H |
| Power | 800W |
| Generator | Digital Power Supply |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Cutter Dimension | 82.5mm |
| Weight of blade | 1.5kgs |
| Gross weight | 8Kgs |
Comparison between Traditional Cutter and Ultrasonic Cutter:
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Advantages and characteristics:
1. The incision is smooth and firm, the cutting edge is accurate, it will not be deformed, and it will not be warped, fluffed, drawn, or wrinkled;
2. High cutting precision and constant rubber compound;
3. The cutting surface has good finish and good bonding performance;
4. Fast, efficient and pollution-free;
5. Beautiful appearance, simple operation, no oscillation when cutting, quiet and easy to carry.
