| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-ES35 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Replacement ES Konverter | Frequency: | 35 Khz |
|---|---|---|---|
| Output Power: | 1200 Watt | Joint Bolt: | M8 |
| Ceramic Disc Diameter: | 25mm | Capacitance: | 4-6nf |
| Amplitude: | 6um | Application: | Cutting Or Welding Spare Parts |
| Highlight: | 35Khz 1200w Converter,35Khz 1200 Watt Converter,Customized 1200w Converter |
||

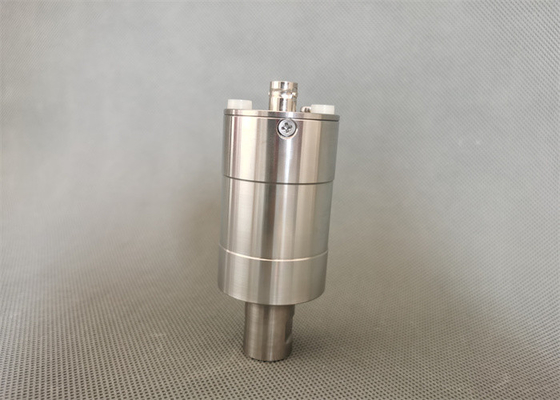

35Khz Customized EUROSONIC Konverter Replacement ES Germany Converter 1200w
Description:
QRsonic imitates the transducer with the same parameter performance according to the transducer test parameters provided by the customer.
35K transducer customized according to customer requirements, replacement 35khz 1200w Eurosonic US-Konverter with Titanium Materials. Art Nr: KP35.0002, Nr. ES 26898. ORsonic can accept custom-made according to customer's requirements.
35Khz 1200W ultrasonic transducer, using piezoelectric ceramics, combined with titanium alloy accessories, using international advanced simulation technology combined with self-developed high-precision assembly equipment, starting from the source technology, research and development and production ensure the transducer products and application technology The stability of parameters, equipped with different generators and die welding heads, can be applied to different ultrasonic applications.
Specifications:
| Model | QR-ES35 |
| Frequency | 35 khz |
| Output power | 1200 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 4-6nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
Ultrasonic transducer manufacturing process:
The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction, and the Cymbal array receiver consists of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets.
1. Dry with hot air gun
2. Swing the electrode first
3. Ceramics, electrodes, ceramics
4. Back cover, screws
5. Positioning
6. Afterburner
7. Glue
8. Put the oven
9. Test with a test machine
10. Filling the seam
11. Test again before packing
35Khz Customized EUROSONIC Konverter Replacement ES Germany Converter 1200w
