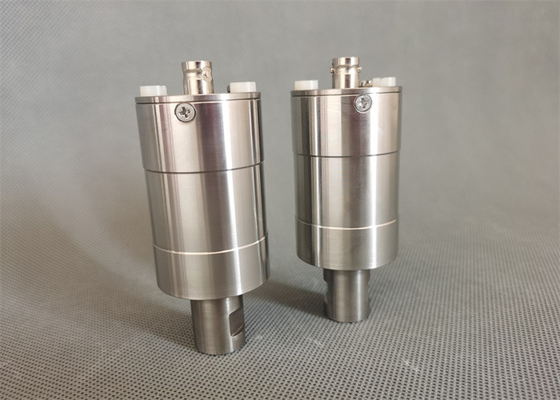

Replacement 35Khz 1200w Eurosonic US-Konverter with Titanium Materials
Description:
35K transducer customized according to customer requirements, replacement 35khz 1200w Eurosonic US-Konverter with Titanium Materials. Art Nr: KP35.0002, Nr. ES 26898. ORsonic can accept custom-made according to customer's requirements.
QRsonic Commonly used high-power ultrasonic transducers are used in ultrasonic plastic welding machines, ultrasonic metal welding machines, various hand-held ultrasonic tools, ultrasonic emulsifier homogenizers, atomizers, ultrasonic engraving machines, etc.
Specifications:
| Model | QR-ES35 |
| Frequency | 35 khz |
| Output power | 1200 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 4-6nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
Adjusting:
The matching of the transducer with the electric box and the mold is the basis for the reliability of the system and the maximum power of the transducer. After the transducer is completed, there will be no adjustable parts. Adjust the electrical box and mold to match the working state of the transducer.
It is recommended to adjust the matching in the following steps:
1. adjust the oscillation frequency of the electric box to suit the dynamic range of the transducer.
2. Adjust the matching circuit so that the no-load current of the transducer is less than 0.5A. The tuning voltage deviation should always be less than 0.2A, and check the transducer for normal vibration and heating.
3. connect the mold, with the load, and adjust the electric box to make the output power of the system meet the requirements for use.
4. Full power test for a certain period of time, check that the state changes of the transducer and the electric box should be within the normal range.
