Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-3028-4BZ |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Piezoelectric Transducer | Frequency: | 28 Khz |
|---|---|---|---|
| Output Power: | 700 Watt | Joint Bolt: | M10 |
| Ceramic Disc Diameter: | 30mm | Qty Of Ceramic Discs: | 4pcs |
| Capacitance: | 6-7nf | Amplitude: | 8um |
| Highlight: | KN95 Mask 28Khz Ultrasonic Transducer,Sonotrode 28Khz Ultrasonic Transducer,KN95 Mask Ultrasonic Transducer 28Khz |
||

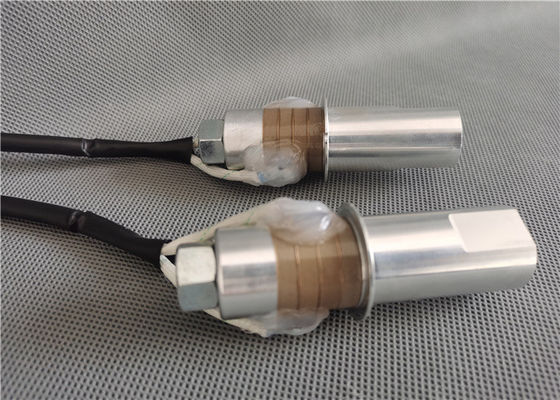

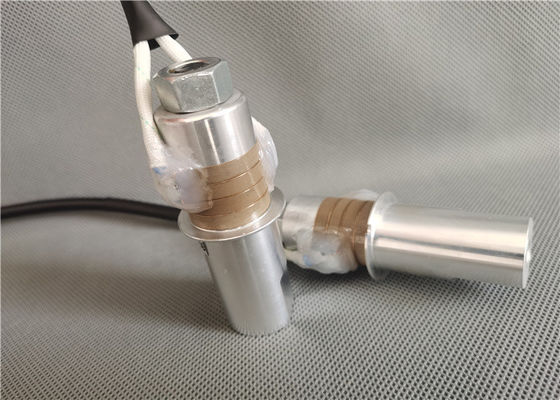

28Khz Ultrasonic Transducer for Sonotrode for Ultrasonic Elastic Cord Sealing Machine for KN95 Mask
Description:
Ultrasonic transducer is a device that converts electrical energy, mechanical energy or acoustic energy from one form of energy to another, called a transducer, also known as an active transducer. The more mature and reliable one is the piezoelectric effect. A device that realizes the mutual conversion of electrical energy and sound energy, also known as piezoelectric transducer.
The 28Khz ultrasonic transducer produced by QRsonic is suitable for spot welding of plastics, as well as spot welding of KN95 and flat masks.
Specifications:
| Model | QR-3028-2BZ |
| Frequency | 28khz |
| Output power | 400 watt |
| Joint bolt | 3/8-24UNF |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 2.8-3.8nf |
| Amplitude | 8 um |
| Application | Plastic welding machine |
Parameters:
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 | ||
Way of working:
Due to different processing methods and requirements, the working modes of ultrasonic transducers can be roughly divided into continuous work (metal welding) and pulsed work (plastic welding). Different working modes have different requirements for the transducer. Generally speaking, continuous operation has almost no pause time, but the working current is not very large. Pulse operation is intermittent, with pauses, but the instantaneous current is large, and the power in both states is very large.
Ultrasonic transducer type and maximum power: There are different regulations for the nominal power of machines for different purposes. The same ultrasonic transducer used on different machines may have different nominal powers. In order to avoid ambiguity, the customer should specify the structural type of the transducer, such as column type, inverted horn type, etc., as well as the diameter and number of piezoelectric ceramic chips.
28Khz Ultrasonic Transducer for Sonotrode for Ultrasonic Elastic Cord Sealing Machine for KN95 Mask
