Replace 41S30 Dukane Ultrasonic Piezoelectric Transducer 20Khz

Ultrasonic Replace Dukane Pizeoelectric Transducer 41S30 for Welding Equipment 20Khz

Description:

It is imitated according to the parameters of the original Dukane transducer and used with the Dukane electric box. QRsonic uses high-quality, high-consistency piezoelectric ceramic sheets, carefully crafted according to the original structural design, high-imitation transducers run stably, with high stability, high consistency, high load testing, no heat, high amplitude, low impedance , the wave is stable, the characteristics of continuous wave.

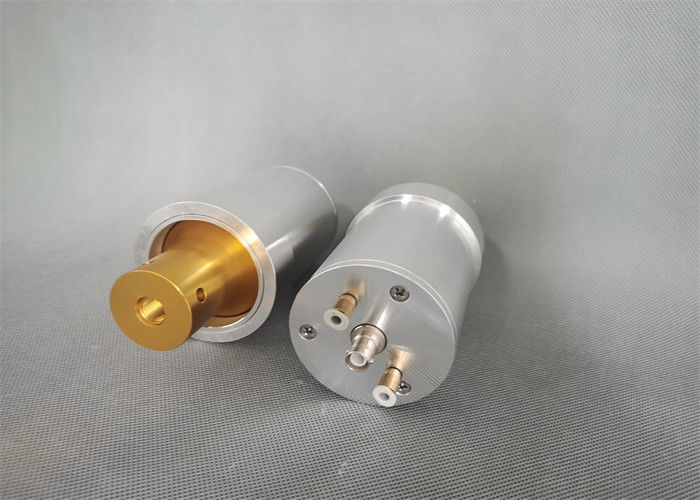

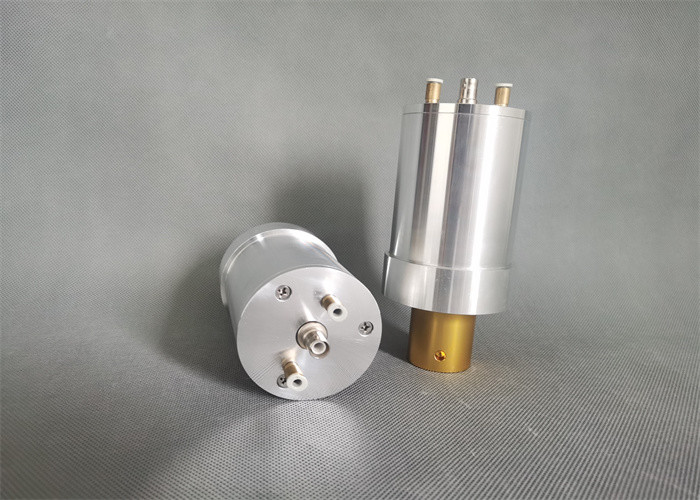

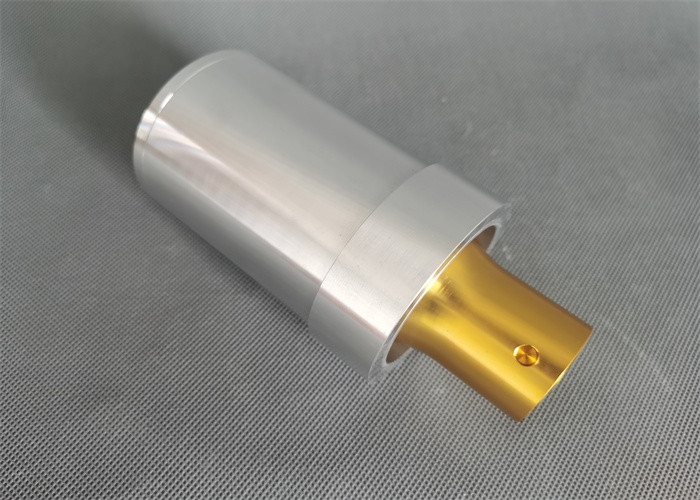

20 KHz Ultrasonic Dukane 41S30 Converter uses the same piezo driver assembly as 110-3122 standard heavy duty transducer but has a sealed housing and a 24" cord terminating in a mil-spec connector to facilitate use in harsh environments or where the equipment must be hosed down for cleaning. The housing has fittings for 1/4" OD poly tubing to carry dry cooling air to and from the driver assembly. Can not be mounted in a standard Dukane press. Requires the use of 200-1233-10 ultrasound cable. Output thread is 1/2-20.

Specifications:

Specification:

Special Items can be customized.

Application:

Ultrasonic transducers are currently mainly used in ultrasonic mask machines, ultrasonic plastic welding machines, ultrasonic metal welding machines, ultrasonic cleaning machines, gas cameras, trichlorine machines and other equipment. In the purchase process of ultrasonic transducers, in addition to paying attention to the energy conversion The quality of the transducer should also pay attention to whether it matches the ultrasonic equipment. This has a decisive influence on the performance of the equipment. The main consideration for matching is the capacitance of the transducer, followed by the frequency of the transducer.
