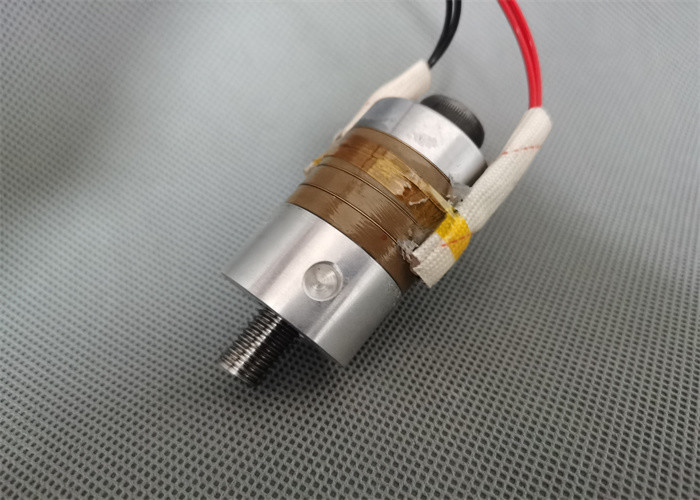

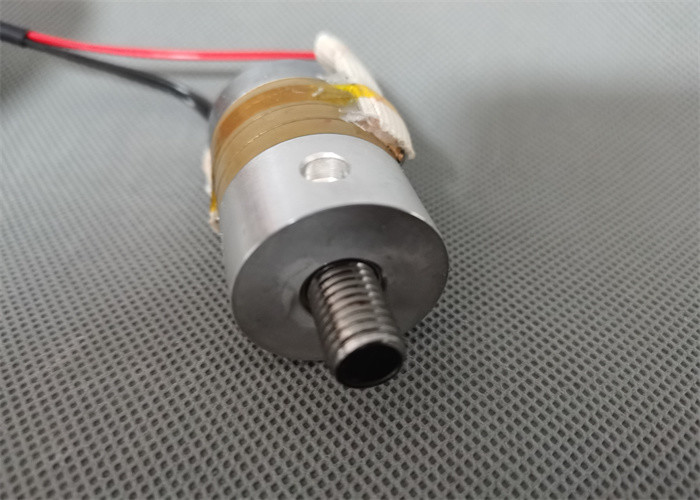

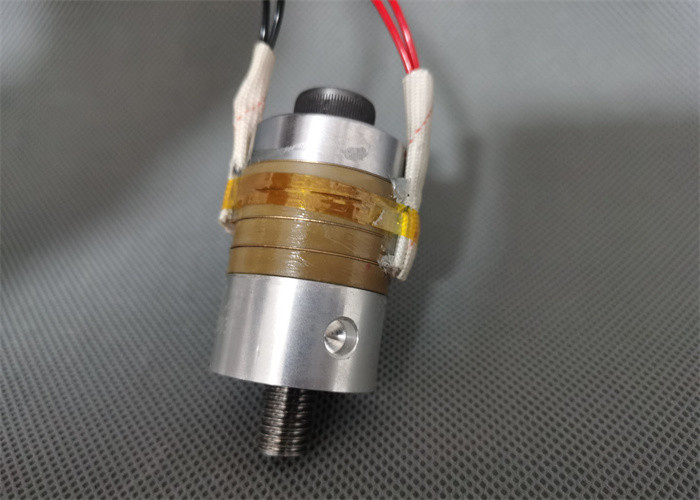

Piezoelectric Ceramics Ultrasonic Welding Transducer 40Khz High Consistency

High Frequency High Consistency Piezoelectric Ceramics 40Khz Ultrasonic Welding Transducer

Description:

The ultrasonic transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.

QRsonic adopts QM value, technical strength, low strong field loss, high power density, low mechanical dielectric loss, high piezoelectric coupling coefficient, stable performance piezoelectric ceramic sheet, through the precise structure design, and the parameters of the ceramic sheet are highly consistent. Accurate, corrosion-resistant, non-rusting, 62 phosphor copper with excellent conductivity, assembled into an ultrasonic transducer with strong stability and long service life.

Specifications:

Features of Ultrasonic transducer product :

1. High performance: high mechanical quality factor, electro-acoustic conversion energy rate of more than 90%.

2. Large amplitude: The vibrator has a high vibration velocity and is directly fixed to the bottom of the cleaning tank by the tamper bolt, so that the strength is improved, and the amplitude is increased by 50% or more compared with the magnetostrictive vibrator.

3. Good heat resistance: wide temperature range, low resonance impedance and low heat generation.

4. Strong structure: fastened with shackle, easy to install, high reliability.

Parameters:

High Frequency High Consistency Piezoelectric Ceramics 40Khz Ultrasonic Welding Transducer
