Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-5520-4BZ |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Sonochemistry Transducer | Frequency: | 20 Khz |
|---|---|---|---|
| Output Power: | 1800 Watt | Joint Bolt: | M18*1.5 |
| Ceramic Disc Diameter: | 55mm | Qty Of Ceramic Discs: | 4pcs |
| Capacitance: | 10.5-11.5nf | Amplitude: | 10 Um |
| Highlight: | 20Khz Piezoelectric Transducer,Water Treatment Piezoelectric Transducer,Sonochemistry Piezoelectric Transducer |
||

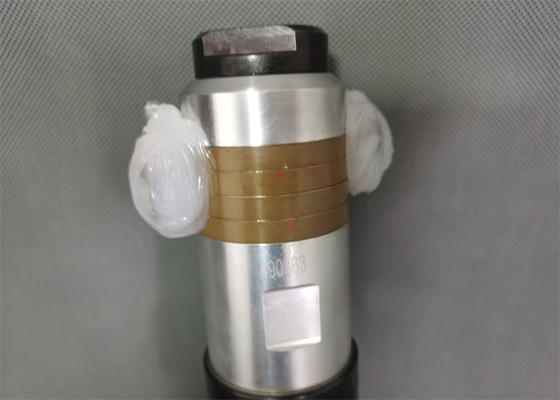

20Khz Ultrasonic Sonochemistry Piezoelectric Transducer for Water Treatment Application
Description:
In addition to applications such as welding, cutting, etc., ultrasonic transducers are also used in the treatment of wastewater. Principle: A deep purification technology that uses the action of ultrasonic waves to treat wastewater.
Ultrasound is a sound wave with a frequency higher than the audible sound frequency (typically 20 kHz). The organic pollutants in wastewater can be degraded by using the special effects of ultrasonic waves and substances (mainly cavitation, thermal effects, etc.). For example: dechlorination of chlorobenzene and chlorophenol, degradation of parathion, etc. Generally, the treatment efficiency of polar and difficult volatile substances by ultrasonic waves is worse than that of non-polar volatile pollutants, and the degradation effect of hydrophobic pollutants is better than that of hydrophilic pollutants.
Specifications:
| Model | QR-5520-4BZ |
| Frequency | 20khz |
| Output power | 1800 watt |
| Joint bolt | M18*1.5 |
| Ceramic disc Diameter | 55mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 10.5-11.5nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Parameters:
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
| Yellow | Grey | Black | |||||
| 6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
| 6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
| 7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
| 4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
| 4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
| 5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
| 5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
| 5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
| 3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
| 5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
| 3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
| 3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
| 3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
| 3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
| 3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
| 1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
| 1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |

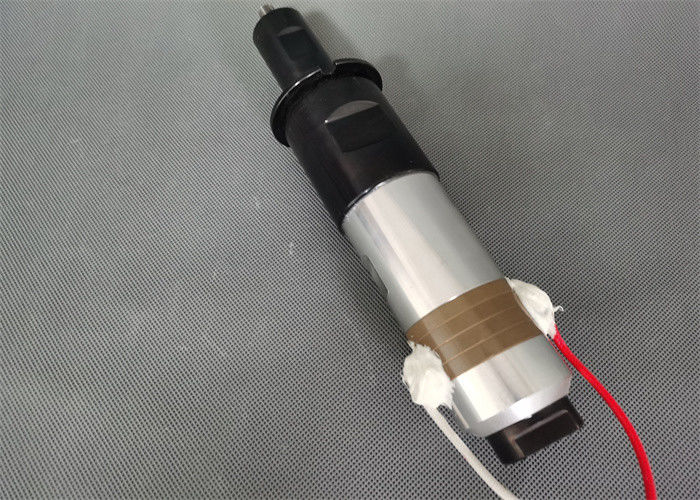

20Khz Ultrasonic Sonochemistry Piezoelectric Transducer for Water Treatment Application
