Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-C30YC |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Plastic Cutter | Frequency: | 30Khz |
|---|---|---|---|
| Power: | 800W | Power Supply: | Digital Generator |
| Voltage: | 220V Or 110V | Weight Of Blade: | 1.25kgs |
| Gross Weight: | 8.5kgs | Application: | Plastic Material Cutter |
| Highlight: | 30khz ultrasonic cutting machine,ultrasonic 30khz cutting machine,CE ultrasonic cutting machine |
||

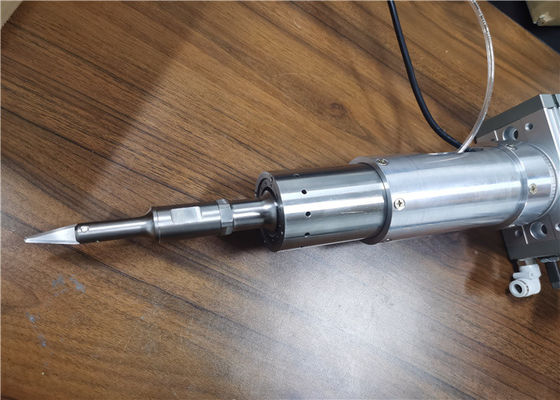

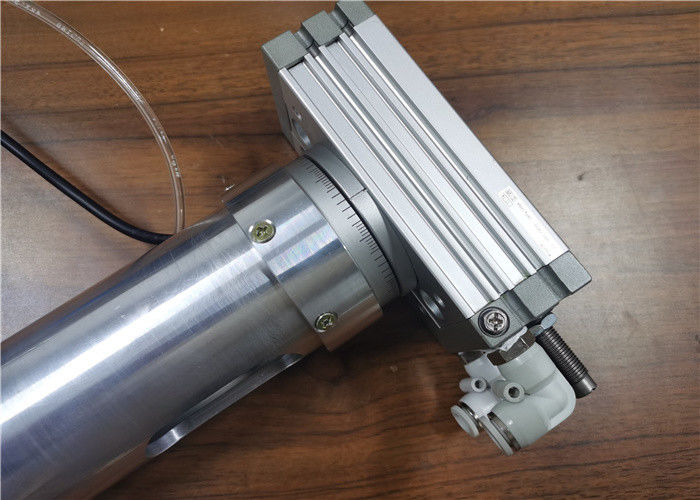

Custom Made 30Khz Ultrasonic Fabric Cutter with Automatic Rotation Device
Description:
Custom Made 30Khz Ultrasonic Fabric Cutter with Automatic Rotation Device. It can be directly installed on the production line for 350-degree rotary cutting.
Ultrasonic cutting knives replace traditional cutting knives. Traditional cutting uses knives with sharp edges to concentrate very large pressure on the cutting edges and press against the material being cut. When the pressure exceeds the shear strength of the material being cut, the molecular bonds of the material are pulled apart to achieve cutting. Since the material is hardly pulled apart by strong pressure, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, the cutting effect is not good for soft and elastic materials, and it is more difficult for sticky materials. Ultrasonic cutting machine is a special application of ultrasonic cutting machine. It is a kind of equipment that uses ultrasonic energy to cut and process. Its biggest feature is that cutting does not require cutting edges.
Specifications:
| Item No | QR-C30Y |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 30KHZ |
| Voltage | 220V or 110V |
| Weight of Blade | 1.25kgs |
| Gross weight | 8.5Kg |
| Application | Plastic Cutter |
Comparison between Traditional Cutter and Ultrasonic Cutter
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Advantages:
1. The incision is smooth and firm, the cutting edge is accurate, it will not be deformed, and it will not be warped, fluffed, drawn, or wrinkled;
2. High cutting precision and constant rubber compound;
3. The cutting surface has good finish and good bonding performance;
4. Fast, efficient and pollution-free;
5. Beautiful appearance, simple operation, no oscillation when cutting, quiet and easy to carry.
Custom Made 30Khz Ultrasonic Fabric Cutter with Automatic Rotation Device
