Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-5020-4CZY |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Name: | Ultrasonic Piezoelectric Transducer | Frequency: | 20 Khz |
|---|---|---|---|
| Output Power: | 2000 Watt | Joint Bolt: | M18*1.5 |
| Ceramic Disc Diameter: | 50mm | Qty Of Ceramic Discs: | 4pcs |
| Capacitance: | 11-12nf | Amplitude: | 10 Um |
| Highlight: | continuous ultrasonic vibration transducer,20khz ultrasonic vibration transducer,1500w ultrasonic vibration transducer |
||

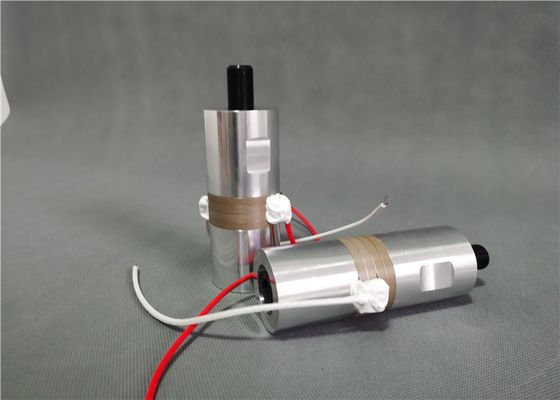

20Khz 1500W Continuous Vibration Transducer for Non-woven Mask Welding Machine
Description:
20Khz 1500W Continuous Vibration Transducer for Non-woven Mask Welding Machine. 20Khz 1500W ultrasonic transducer, using piezoelectric ceramics, using international advanced simulation technology combined with self-developed high-precision assembly equipment, starting from the source technology, research and development and production ensure the transducer products and application technology The stability of parameters, equipped with different generators and die welding heads, can be applied to different ultrasonic applications.
Specifications:
| Model | QR-5020-4cZ |
| Frequency | 20khz |
| Output power | 2000 watt |
| Joint bolt | M18*1.5 |
| Ceramic disc Diameter | 350mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-12nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Parameters:
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 7015-4BZ | M20 X 1.5 | 70 | 4 | 15 | 12500-14000 | 17000-19000 | 2600 | |
| 6015-4BZ | M20 X 1.5 | 60 | 4 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 |
| 6015-6BZ | M20 X 1.5 | 60 | 6 | 15 | 14000-16000 | 19500-21000 | 2600 | |
| 5015-4BZ | M18 X 1.5 | 50 | 4 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 |
| 4015-4BZ | M16 X 1 | 40 | 4 | 15 | 10000-11000 | 10500-11500 | 700 | |
| 5520-4BZ | M18 X 1 | 55 | 4 | 20 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 |
| 5020-6BZ | M18 X 1.5 | 50 | 6 | 20 | 18500-20000 | 22500-25000 | 2000 | |
| 5020-4BZ | M18 X 1.5 | 50 | 4 | 20 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 |
| 5020-2BZ | M18 X 1.5 | 50 | 2 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 |
| 5020-4CZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 1500 | ||
| 5020-4BL | M18 X 1.5 | 50 | 4 | 20 | 11000-12500 | 1500 | ||
| 4020-4BZ | 1/2-20UNF | 40 | 4 | 20 | 9000-10000 | 9500-11000 | 900 | |
| 4020-2BZ | 1/2-20UNF | 40 | 2 | 20 | 4800-5500 | 500 | ||
| 3820-4BZ | 1/2-20UNF | 38 | 4 | 20 | 6500-7500 | 800 | ||
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 | ||
20Khz 1500W Continuous Vibration Transducer for Non-woven Mask Welding Machine
