| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | AY-DG6810-1 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in wooden case |
| Delivery Time: | 20 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 100 pcs per month |
| Products Name: | Filter Cartridge Outer Cage Extension Welding Machine | Power: | 3000w |
|---|---|---|---|
| Voltage: | 380V 50HZ | Air Pressure: | 5Kg/c㎡ |
| Heating Accuracy: | ±2℃ | Temperature Range: | Normal~ 400℃ |
| Welding Speed: | 30s/pcs | Gross Weight: | 900kgs |
| Highlight: | microporous membrane ultrasonic welding machine,ultrasonic microporous membrane welding machine,3000w ultrasonic welding machine |
||
Customized Filter Element Interface End Cup Extension Welding Machine Microporous Membrane Folding
Description:

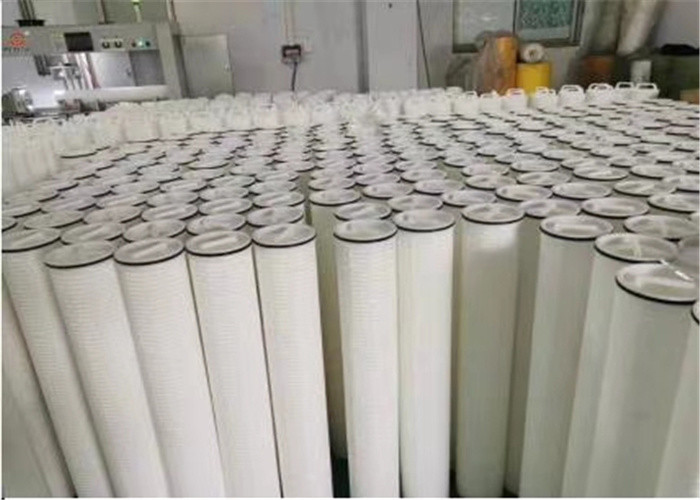

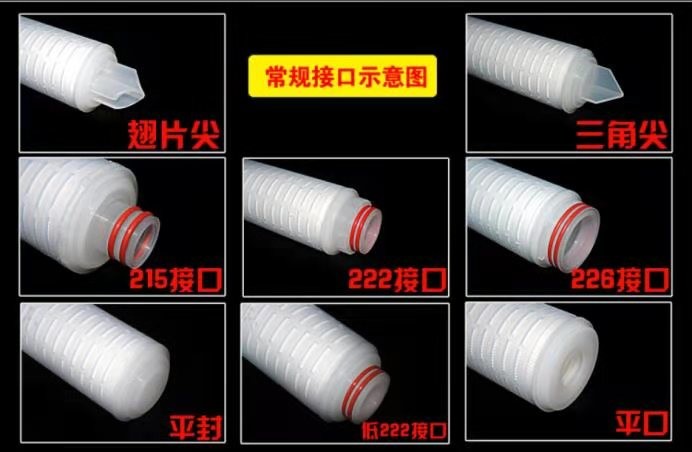

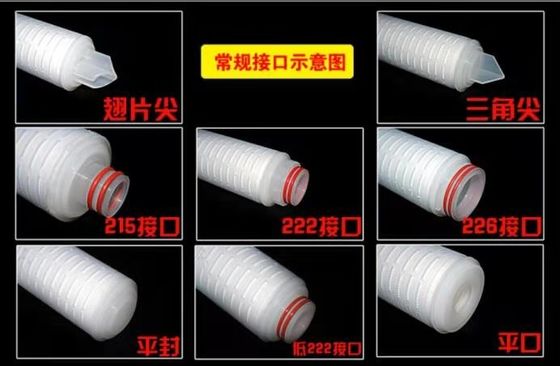

This equipment is a microporous membrane folding filter element interface, end cap, and extension welding machine designed according to customer requirements. Mainly for the hot-melt sealing welding of the plastic cover at both ends of the filter element, the welding of the 222 sealing ring head, the 226 sealing ring head, and the length of the filter element to 20 inches, 30 inches, 40 inches and other lengths. After welding, the sealing performance of the filter element can be effectively ensured. And firm.
Technical Parameters:
| Item No | AY-DG6810-1 |
| Products Name | Filter Cartridge Outer Cage Extension End Cup Welding Machine |
| Power | 3000w |
| Voltage | 380V 50HZ |
| Air pressure | 5Kg/c㎡ |
| Heating Accuracy | ±2℃ |
| Temperature Range | Normal~ 400℃ |
| Welding Speed | 30s/pcs |
| Dimensions | L2000*W1000*H1800 |
| Gross weight | 900kgs |
Configuration Details:
1. PLC: adopts the "Delta" brand, which is the core of the entire equipment's working procedures, and its internal is the relevant working procedures compiled by the equipment manufacturer according to the customer's welding process needs. The entire equipment is in the "automatic" or "manual" state Complete all the work required in the production process.
2. Touch screen: The "Delta" brand touch screen is used. According to the welding process needs, our company cooperates with the PLC program to compile the corresponding work program, reflects the various work control status interfaces, and completes various execution commands.

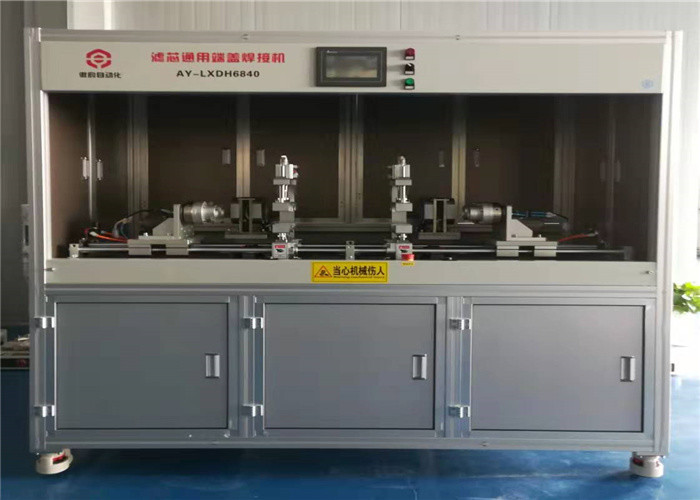

3. Operation panel: There are four thermostats and ammeters that display the temperature of the heating module on the operation surface. They are: left heating thermostat, right heating thermostat, left heating ammeter, right heating ammeter, and a power indicator. A reset button and a power switch.
4. Solenoid valve control group: The corresponding signal is sent out through the PLC output point or manual operation to control the movement direction of each pneumatic mechanism, so as to complete the process of production.
5. Air filter (filter cup): filter the airflow of the input pneumatic components, which can extend the working life of each pneumatic component.

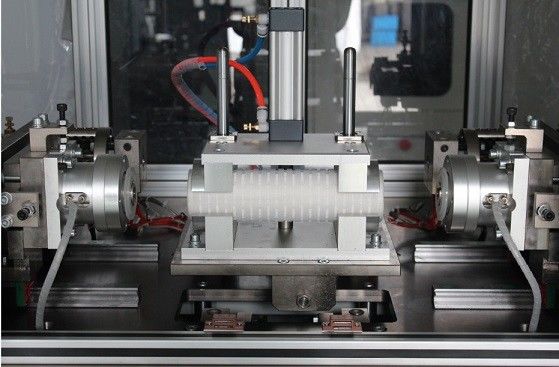

6. Thermocouple: Installed on the hot mold, through its temperature sensing to the hot mold, it sends a signal to the thermostat, and then the temperature controller controls the on and off of the solid state relay that supplies power to the hot mold to realize automatic control of the hot plate temperature.
7. Magnetic induction switch: The position signal of each station is sent to the PLC through the magnetic induction inside the cylinder. The upper and lower cylinders of the hot mold and the feeding cylinder are installed.
