| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-5020-4BZ-BZB |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Welding Transducer | Output Power: | 1500w |
|---|---|---|---|
| Frequency: | 20khz | Ceramic Disc Diameter: | 50mm |
| Qty Of Ceramic Discs: | 4pcs | Capacitance: | 11-16nf |
| Connected Screw: | 3/8-24UNF | Application: | Ultrasonic Plastic Welding Machine |
| Highlight: | ultrasonic vibration transducer,high power ultrasonic emitter |
||

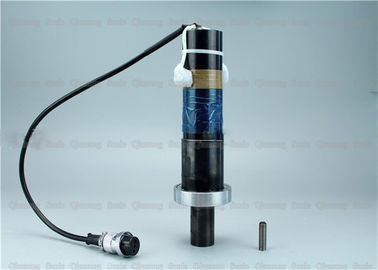

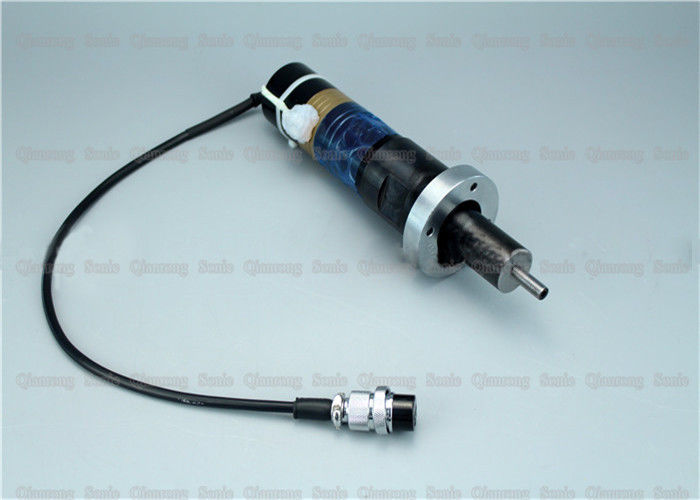

1500w 20Khz Ultrasonic Continuous Welding Transducer for Non-woven Fabric Bonding
Description:
Ultrasonic vibrator is also called the ultrasonic oscillator. QRsonic can supply 15Khz and 20khz ultrasonic vibration system for Mask machine machine.
The non-woven masks currently on the market are basically produced by ultrasonic mask machines. According to the shape, the non-woven masks mainly include non-woven inner ear masks, non-woven outer ear masks, non-woven strap masks, non-woven Cup masks, non-woven folding masks, non-woven duckbill masks, etc. These non-woven masks are produced by corresponding ultrasonic mask machines. The non-woven outer ear band mask is produced by two machines, the ultrasonic mask body machine and the ultrasonic mask outer ear band machine.
Specifications:
| Model | QR-5020-4BZ-BZB |
| Frequency | 20khz |
| Output power | 1500 watt |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-16nf |
| Application | Plastic welding machine |

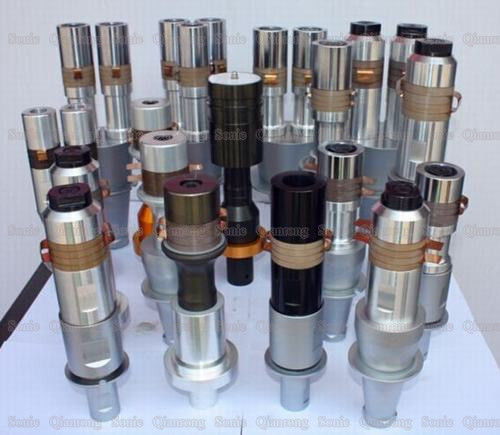

Parameters:
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
| Yellow | Grey | Black | |||||
| 6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
| 7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
| 6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
| 7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
| 6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
| 4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
| 4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
| 5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
| 5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
| 5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
| 3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
| 5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
| 3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
| 3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
| 3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
| 3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
| 3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
| 3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
| 3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
| 1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
| 1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |
