| Products Name: | Ultrasonic Welding Transducer | Frequency: | 40 Khz |
|---|---|---|---|
| Output Power: | 200 Watt | Joint Bolt: | M8 |
| Ceramic Disc Diameter: | 20mm | Qty Of Ceramic Discs: | 2pcs |
| Capacitance: | 1.5-1.7nf | Amplitude: | 4um |
| Highlight: | ultrasonic piezo transducer,high frequency ultrasonic transducer |
||

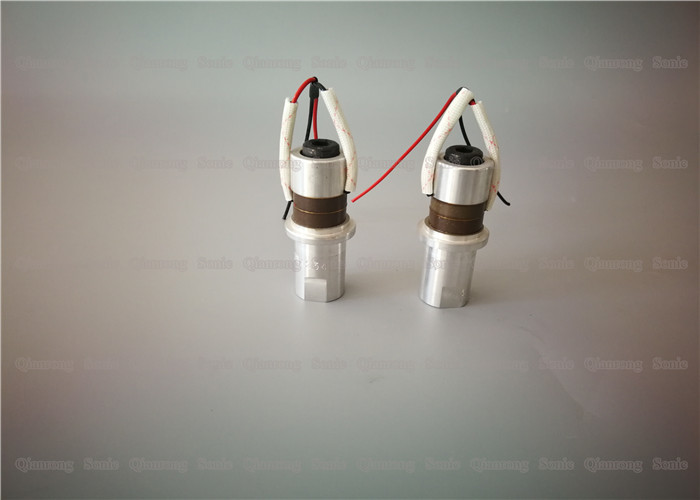

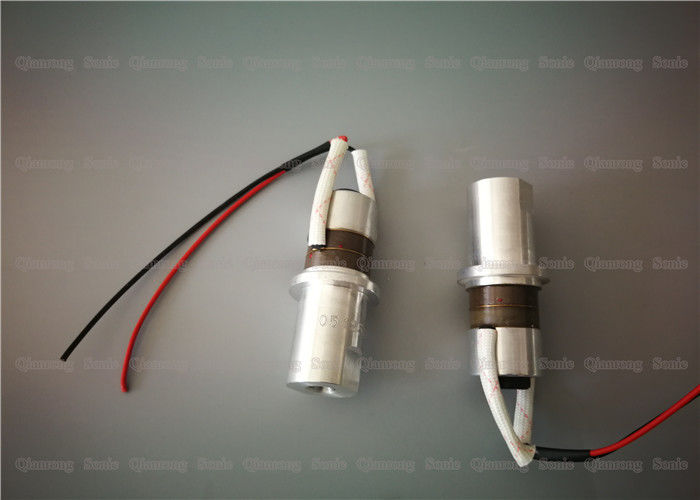

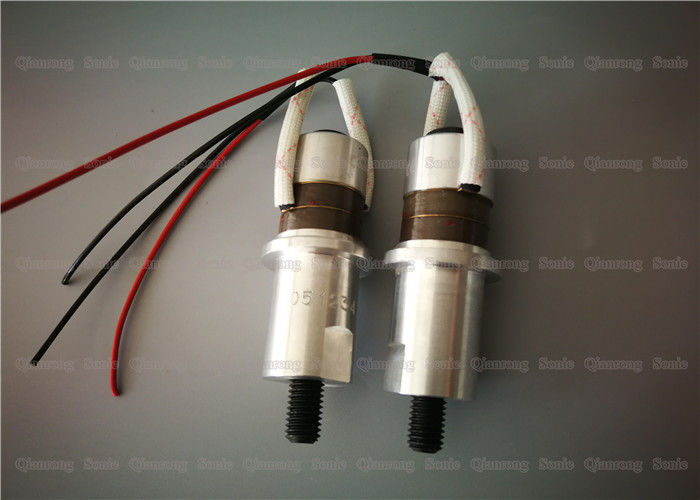

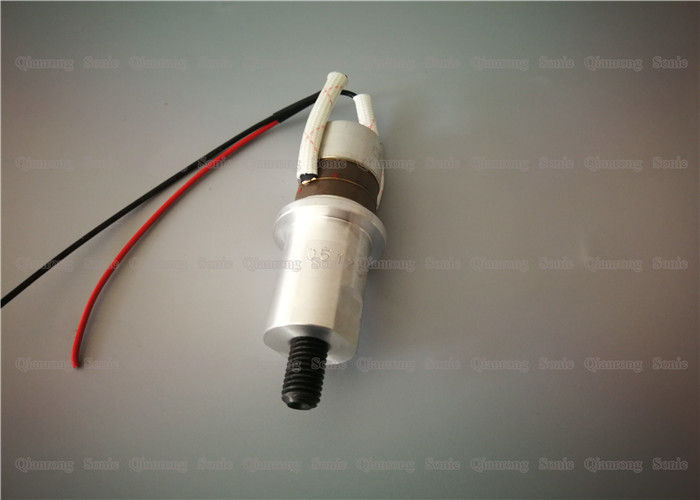

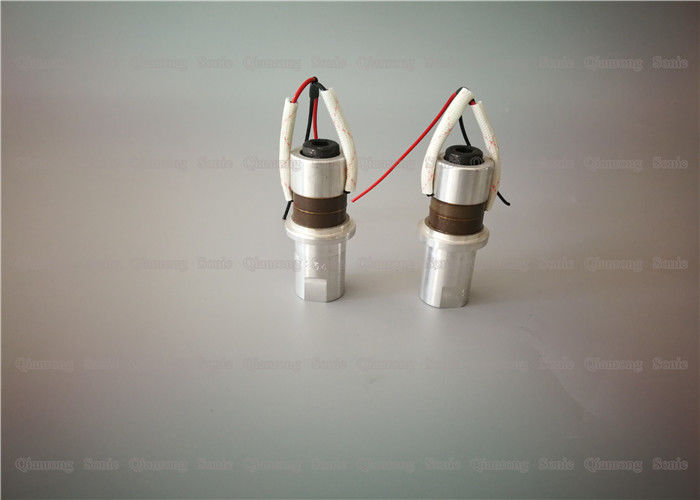

Ultrasonic Active Sensor Converting Electric Energy to Mechanical Energy by Ultrasonic Piezoelectric Effect
Description:
Ultrasonic transducers convert electrical energy, mechanical energy or acoustic energy from one form of energy to another form of energy device, also known as an ultrasonic transducer, also known as an active sensor. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.
Specifications:
| Model | QR-2040-2BD |
| Frequency | 40khz |
| Output power | 200 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 20mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 1.5-1.7nf |
| Amplitude | 4 um |
| Application | Plastic welding machine |
Parameters:
|
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) |
||||||||||
|
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Resistance (Ω)
|
Capacitance |
Input power (W)
|
Max. Amplitude (um)
|
||
| Yellow | Grey | Black | ||||||||
| 7015-4BD | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 11 |
| 6015-4BD | M18 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | 10000-11000 | / | 2200 | 11 |
| 6015-4FD | M20 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | / | / | 2600 | 11 |
| 6015-6BD | 1/2-20UNF | 60 | 6 | 15 | 15 | 19000-20500 | / | 23000-25000 | 2600 | 11 |
| 5015-6BD | 1/2-20UNF | 50 | 6 | 15 | 15 | 17000-19000 | / | 23000-25000 | 2000 | 11 |
| 5020-4BD | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | 14500-16000 | 1500 | 8 |
| 5020-6BD | 1/2-20UNF | 50 | 6 | 20 | 15 | 19000-21000 | / | 22500-25000 | 2000 | 10 |
| 4020-6BD | 1/2-20UNF | 40 | 6 | 20 | 15 | 13500-15000 | / | / | 1500 | 10 |
| 4020-4BD | 1/2-20UNF | 40 | 4 | 20 | 15 | 8500-9300/ 9500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3535-2BD | M8 X 1 | 35 | 2 | 35 | 25 | / | / | 4500-5000 | 600 | 9 |
| 3535-4BD | M8 X 1 | 35 | 4 | 35 | 20 | 6600-7400 | / | 9000-10000 | 1000 | 4 |
| 2535-4FD | M8 | 25 | 4 | 35 | 25 | 3900-4300 | / | / | 500 | 4 |
| 2535-4LD | M8 | 25 | 4 | 35 | 25 | 3900-4600 | / | / | 500 | 4 |
| 2535-4QD | M8*1 | 25 | 4 | 35 | 25 | / | 6500-7500 | / | 500 | 4 |
| 2540-4BD | M8 | 25 | 4 | 40 | 30 | 4500-5300 | / | / | 500 | 3 |
| 2040-2BD | M8 | 20 | 2 | 40 | 40 | 1100-1300 | 1150-1350 | / | 300 | 2 |
