Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | AY-LXHW6812 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in wooden case |
| Delivery Time: | 20 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 100 pcs per month |
| Products Name: | Infrared Filter Welding Machine | Power: | 5000w |
|---|---|---|---|
| Voltage: | 380V 50HZ | Air Pressure: | 6Kg/c㎡ |
| Heating Accuracy: | ±2℃ | Temperature Range: | Normal~ 600℃ |
| Welding Speed: | 2pcs/min | Gross Weight: | 500kgs |
| Highlight: | ultrasonic welding machine,ultra welding machine |
||

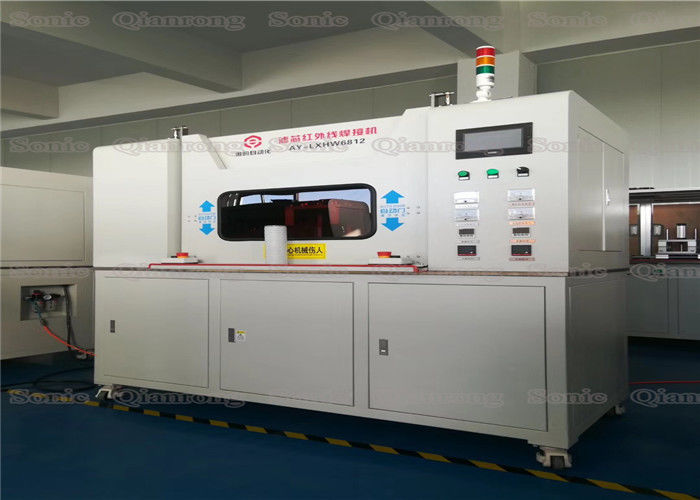

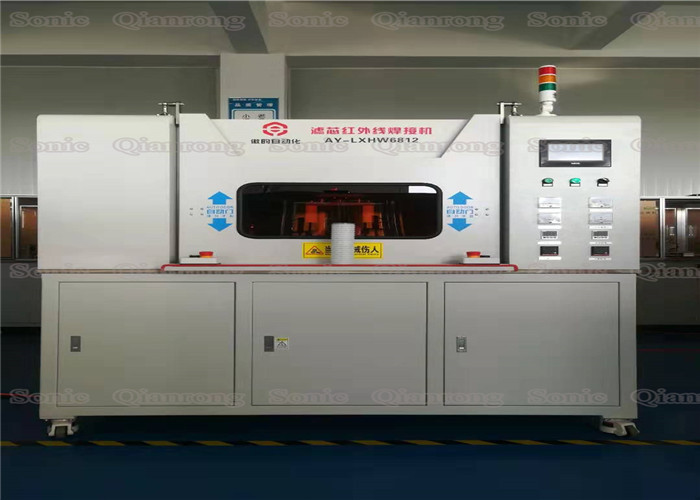

Infrared Filter Welding Machine for Jointing Both Ends of Filter Element with Effective Sealing
Description:

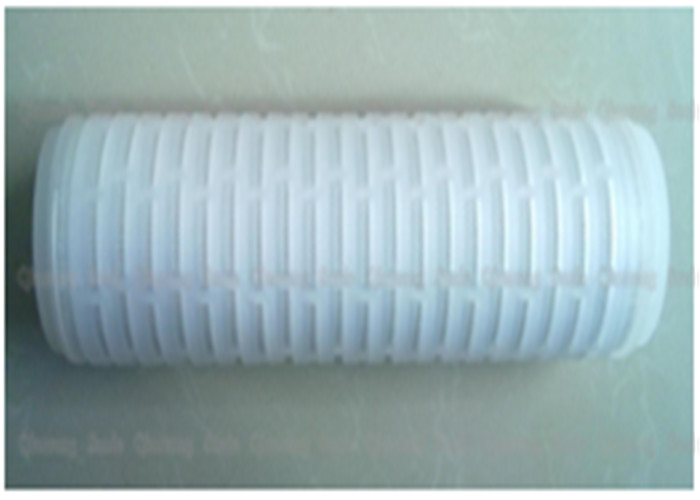

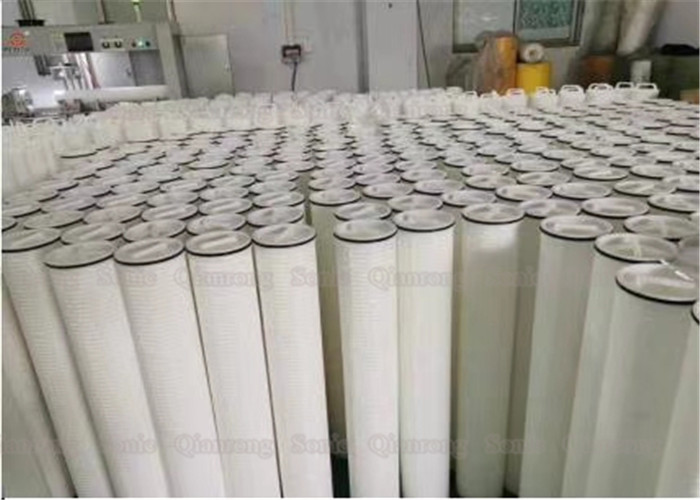

This equipment is a folding filter infrared welding machine, which is mainly used for welding the film and end cover of the folding filter. After welding, it can effectively ensure the sealing and firmness of the filter housing.
Technical Parameters:
| Item No |
AY-LXHW6812 |
| Products Name | Infrared filter welding machine |
| Power | 5000w |
| Voltage | 380V 50HZ |
| Air pressure | 6Kg/c㎡ |
| Heating Accuracy | ±2℃ |
| Temperature Range | Normal~ 600℃ |
| Welding Speed | 2pcs/min |
| Dimensions | L1500*W800*H1800 |
| Gross weight | 500kgs |
Configuration Details:
Touch Screen + PLC: Delta
Circuit breaker: LG
Thermostat: Winpark
Solid State: Shimadan
Guide rail, slider: HIWIN
Auxiliary applicances: IDEC
Pneumatic components: Airtec
Protective Cover: European Standard Aluminum Profile + PMMA
Parts: carton steel 45(S45X) (Galvanized)
Filter cartridge holder: 6061 aluminum plate ( surface anodized)
Infrared Filter Welding Machine for Jointing Both Ends of Filter Element with Effective Sealing
