Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-WD15W |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Power Supply | Frequency: | 15KHZ |
|---|---|---|---|
| Power: | 2600W | Voltage: | 220V Or 110V |
| Generator: | Digital Generator | Application: | Plastic Welding Machine |
| Highlight: | ultrasonic sound wave generating device,ultrasonic signal generator |
||

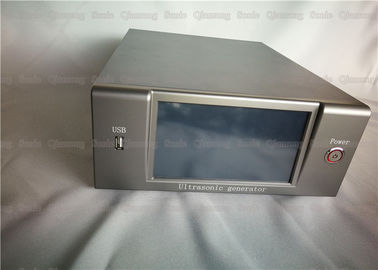

Upgrated Entire 15khz 2600w Ultrasonic Digital Power Supply with Anti-harmonic Point System
Description:
Ultrasonic power is often referred to as an ultrasonic source, an ultrasonic generator. Its function is to convert electrical energy into a high frequency alternating current signal that matches the ultrasonic transducer. From the form of the amplifying circuit, a linear amplifying circuit and a switching power supply circuit can be used, and a high-power ultrasonic power source generally adopts a circuit form of a switching power supply in terms of conversion efficiency. Linear power supplies also have their own range of applications. It has the advantage of not requiring strict circuit matching and allowing continuous and rapid changes in operating frequency. From the current situation in the ultrasound industry, ultrasound is mainly divided into self-excited and its exciting power supply.
Specifications:
| Item No | QR-WD15W |
| Power | 2600W |
| Generator | Digital generator |
| Frequency | 15KHZ |
| Voltage | 220V or 110V |
| Size | 460*420*210mm |
| Application | Plastic Welding Machine |
| Net weight | 10Kg |
Performance Characteristics of Digital intelligent numerical control generator:
1. Real-time monitoring: monitor the working frequency and power of high-power ultrasound systems.
2. Parameter adjustment: The power, amplitude, and running time can be adjusted in real time according to different requirements.
3. Auto-following: After the device has completed the initial setup, it can continue to work without having to adjust the generator.
4. Automatic amplitude control: The drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
5. System protection: When the generator encounters special circumstances, it can automatically stop working and display alarm to protect the system from damage.
6. Amplitude adjustment: The amplitude can be adjusted during the working process, and the adaptation range is 0%~100%.
7. Automatic search frequency: It can automatically measure the optimal working frequency of the tool head and store it.
8. Non-resonant state (forced vibration) work: It can work in non-resonant state according to customer requirements, suitable for special ultrasonic applications.
Upgrated Entire 15khz 2600w Ultrasonic Digital Power Supply with Anti-harmonic Point System
