Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-2528-2FZ |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Welding Transducer | Frequency: | 28 Khz |
|---|---|---|---|
| Output Power: | 300 Watt | Joint Bolt: | M8*1 |
| Ceramic Disc Diameter: | 25mm | Qty Of Ceramic Discs: | 2pcs |
| Capacitance: | 1.9-2.6nf | Amplitude: | 8um |
| Highlight: | ultrasonic piezo transducer,high frequency ultrasonic transducer |
||

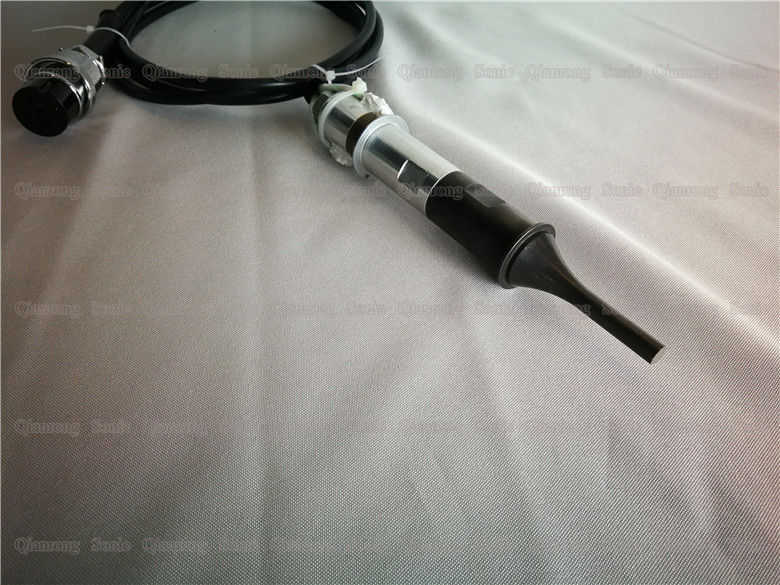

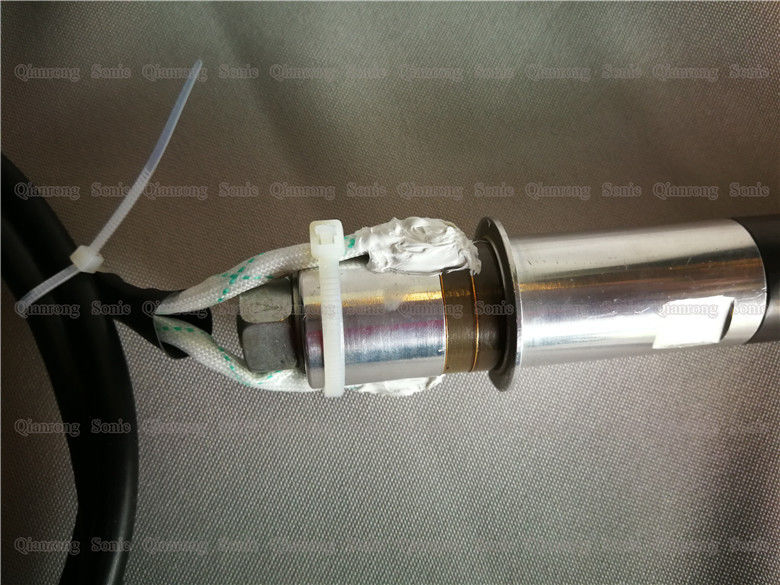

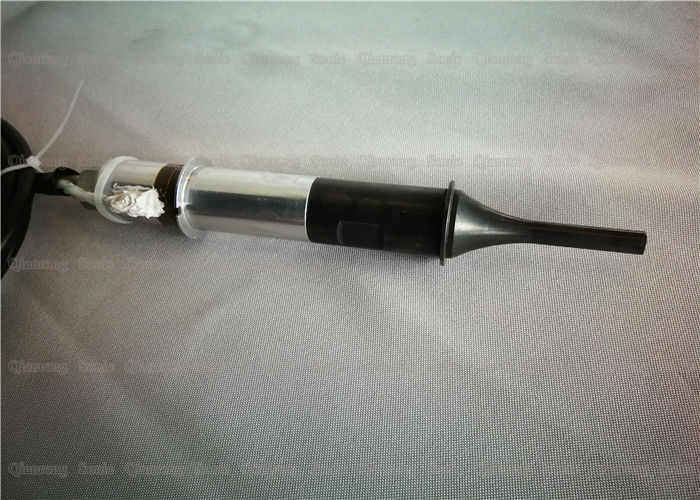

28Khz Piezoelectric Ultrasonic Converter with 2pcs Ceramics for Non-woven Fabric Welding
Description:
Ultrasonic welding is not radiation, it will not cause direct radiation damage to the human body. If it is harmful, it is a certain noise when ultrasonic welding plastic. The noise is different according to the frequency. The noise of 20KHZ equipment is relatively high. Smaller, the application of ultrasonic plastic welding technology in the plastics industry has become increasingly common. The use of this technology can replace the flux, adhesive, pinning or other mechanical fixing methods required in the past, thereby increasing production efficiency and reducing costs. The principle of ultrasonic welding machine is to generate 20KHz (or 15KHz) high-voltage and high-frequency signals from the generator. Through the energy conversion system, the signal is converted into high-frequency mechanical vibration, which is applied to the workpiece of plastic products and passes through the surface of the workpiece and the intrinsic molecules. Friction increases the temperature of the interface to the interface. When the temperature reaches the melting point of the workpiece itself, the workpiece interface is rapidly melted and then filled in the gap between the interfaces; when the vibration stops, the workpiece is simultaneously cooled and shaped under a certain pressure. A perfect weld is achieved.
Specifications:
| Model | QR-2528-2FZ |
| Frequency | 28khz |
| Output power | 300 watt |
| Joint bolt | M8*1 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 1.9-2.6nf |
| Amplitude | 8 um |
| Application | Plastic welding machine |
Advantages:
1. Energy saving and environmental protection
2. No ventilation device equipped with smoke and heat dissipation
3. Low cost, high efficiency
4. Easy to achieve automated production
5. High welding strength and firm bonding
6. Beautiful solder joints, can achieve seamless welding, moisture-proof and waterproof, good air tightness Note: Thermosetting plastics can not be ultrasonically welded.
7. Fast welding speed, high welding strength and good sealing; replace traditional welding/bonding process, low cost, clean and pollution-free and will not damage the workpiece; stable welding process, all welding parameters can be tracked and monitored by software system Once the fault is found, it is easy to eliminate and maintain.
8. The welding material does not melt and is not fragile.
9. Good electrical conductivity after soldering, very low resistivity or near zero.
10. The welding metal surface is required to be low, and the oxidation or electroplating can be welded.
11. Short soldering time, no need for any flux, gas, solder.
28Khz Piezoelectric Ultrasonic Converter with 2pcs Ceramics for Non-woven Fabric Welding
