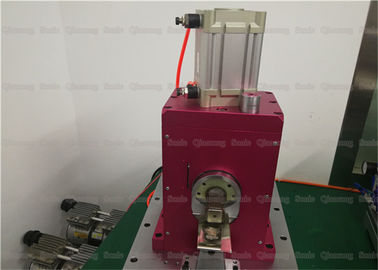

Special Customized Reticulation for Ultrasonic Metal Welding Horn with Imported Steel Mold
Description:
Ultrasound is widely used in medicine, military, industrial and other industries due to its good directionality and strong penetrating power. Ultrasonic metal spot welding machine is the heat generated by the vibration friction of tens of thousands of times per second of ultrasonic wave. The energy of ultrasonic vibration is converted into friction energy and transmitted to the metal surface, and then the external pressure is used to fuse the molecular layer of the workpiece contact surface.
Specifications:
| Item No | QR-D2020A | QR-D2030A | QR-D2050A |
| Power | 2000W | 3000W | 5000W |
| Air Pressure | 0.05-0.9MPa | 0.05-0.9MPa | 0.05-0.9MPa |
| Frequency | 20KHZ | 20KHZ | 20KHZ |
| Voltage | 220V | 220V | 380V |
| Weight of horn | 55KG | 60KG | 88KG |
| Dimension of Horn | 550*280*380mm | 550*280*430mm | 550*380*660mm |
| Generator Size | 540*380*150mm | 540*380*150mm | 540*380*150mm |
Applicable Products:
1) Nickel-metal hydride battery Nickel-metal hydride battery nickel mesh and nickel sheet inter-melting and nickel sheet inter-melting.
2) Lithium battery, polymer battery copper foil and nickel sheet are mutually melted, and aluminum foil and aluminum sheet are mutually melted.
3), the wires are mutually melted, and they are entangled into one and a plurality of mutually melted.
4), the wire and various electronic components, contacts, connectors inter-melting.
5), the mutual melting of large-scale heat sinks, heat exchange fins and honeycomb hearts of various household appliances and automotive products.
6), electromagnetic switch, no fuse switch and other large current contacts, mutual melting of dissimilar metal pieces.
7) The sealing and cutting of the metal pipe can be water and airtight.
How does an ultrasonic welder work?
The principle of ultrasonic welding is to convert 50/60 Hz power frequency to 20 kHz or more by ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into mechanical vibration of the same frequency, and then the mechanical motion is transmitted to the welding head through a set of amplitude varying amplitude modulators. The welding head transfers the vibration energy to the joint of the workpiece to be welded, in which the vibration energy is converted into mechanical energy and thermal energy by friction, so that the workpiece to be processed is welded. Ultrasonic waves can be used not only to weld hard thermoplastics, but also to weld metals.
Ultrasonic welding of plastics generally uses the way the welding head vibrates perpendicular to the workpiece. For some thin plastic parts, the direction of vibration of the welding head can be parallel to the workpiece. When ultrasonic welding of metal, the direction of vibration of the welding head is parallel to the workpiece.
Since vibration propagates in metal with various vibration modes: longitudinal vibration, radial vibration, bending vibration, and torsional vibration, it is possible to comprehensively analyze which vibration mode is used according to the material to be welded, and pressurize based on the vibration mode. The design of the mechanism and the frame.
The main components of a set of ultrasonic welding systems include ultrasonic generators, transducers/amplifiers/welding heads, molds and frames. The main functions of the frame are fixed and stroke pressurization mechanisms.
Special Customized Reticulation for Ultrasonic Metal Welding Horn with Imported Steel Mold
