Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W70D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.m Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| Highlight: | ultrasonic bonding machine,portable ultrasonic welder |
||
70Khz High Frequency RFID waves Ultrasonic Fast Connection Technology for Metro Card
Description:
70Khz ultrasonic embedding device is to convert the 50/60 Hz current into high-frequency alternating current through the ultrasonic generator, and then input the electric energy into the ultrasonic transducer to generate high-frequency mechanical motion, and then the mechanical movement can be changed through one set. The amplitude amplitude modulator device is transmitted to the welding head, and the welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction, the plastic is melted, and the wire is discharged in a short time. Buried in a plastic sheet.
Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is a professional equipment for smart card embedding. It is applied to sheet welding positioning and antenna embedding. One of the important applications in the field of ID smart cards. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for the buried welding of various ID smart cards.Depending upon the output of the encoder, the speed and rotation of the wire dispensing spool is controlled until the tension in the antenna wire feed line is eliminated.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 5M |
| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Features:
1. Ultrasonic planting system is equipped with a new version of intelligent CNC generator, which is automatically completed by frequency search and frequency chasing.
2. The 70K tool head has a hole diameter of 0.m and 0.5mm for users of different needs.
3. All tool head threading hole outlets and welding surface circumference are rounded to avoid wire breakage.
4. Ultrasonic transducer protection shell material is made of aluminum alloy, which has good heat dissipation, strong pressure resistance and good wear resistance.
5. In the ultrasonic system, the transducer and tool head are strictly calibrated before leaving the factory. Do not disassemble and disassemble them. After disassembling, the transducer may be damaged.
6. If you need to rework the tool head or other special requirements, please inform the company in advance, we can customize it for you before leaving the factory.

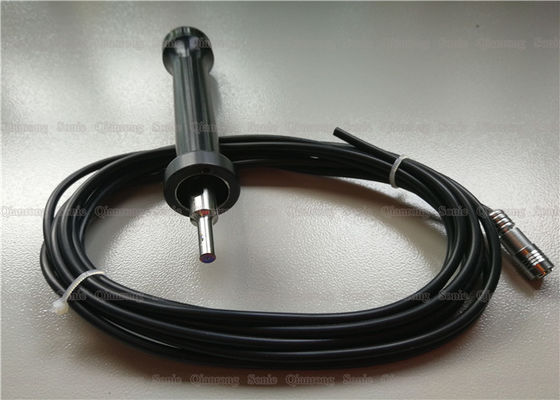

70Khz High Frequency RFID waves Ultrasonic Fast Connection Technology for Metro Card
