Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-C40A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | packed in carton box |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Cutter | Frequency: | 40KHZ |
|---|---|---|---|
| Power: | 100W | Generator: | Analog Generator |
| Voltage: | 220V Or 110V | Handle Dimension: | Φ32*170 |
| Generator Dimension: | 155*265*170mm | Replacement Blade: | 25pcs |
| Highlight: | ultrasonic slitting machine,ultrasonic cake cutting machine |
||

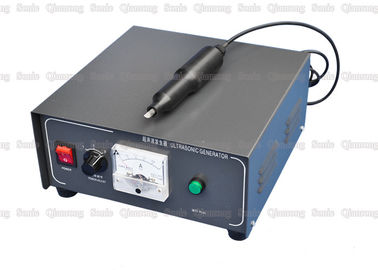

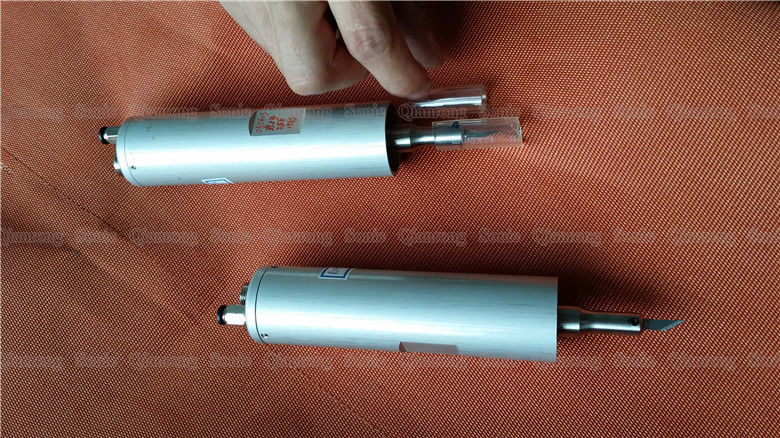

High Frequency 40Khz 100w Ultrasonic Cutter with Replacement Blade
Description:
Ultrasonic cutting knives, also known as ultrasonic cutting machines, are an ultrasonic device dedicated to cutting and are one of the important categories for ultrasonic applications. The principle of ultrasonic cutting is completely different from the cutting in the traditional sense. Ultrasonic cutting uses the energy of an ultrasonic transducer to melt the localized heat of the material to be cut, thereby achieving the purpose of cutting the material. Therefore, the ultrasonic cutting does not require a sharp cutting edge, nor does it require a large pressure, and does not cause chipping or breakage of the material to be cut. At the same time, since the cutting blade is subjected to ultrasonic vibration, the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. This is especially effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.
Specifications:
| Item No | QR-C40A |
| Power | 100W |
| Generator | Analog generator |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Handle Dimension | Φ32*170 |
| Generator Dimension | 155*265*170mm |
| Gross weight | 5Kg |
| Replacement blade | 25pcs |
Advantage:
The characteristics of the ultrasonic cutting machine do not require sharp edges, do not require a lot of pressure, and will not cause chipping or breakage of the cutting material.
The cutting blade is subjected to ultrasonic vibration, and the frictional resistance is particularly small, and the material to be cut is not easily adhered to the blade. The cutting effect on frozen, viscous and elastic materials is obvious. It is especially effective for cutting food, rubber or inconvenient objects.
At the same time of cutting, the cutting portion has a fusion. The cutting site is perfectly sealed to prevent loose tissue (such as textile material flash). The use of ultrasonic cutting machines can also be extended, such as digging holes, shovel digging, scraping paint, engraving, slitting, etc.
High Frequency 40Khz 100w Ultrasonic Cutter with Replacement Blade
