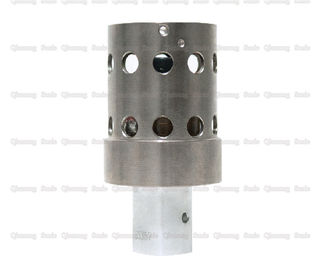

Plastic Device Ultrasonic Welding Converter 20Khz Utilizing Model 43A250 43E255 43B260

Utilizing Model 43A250 43A255 43D255 43E255 43A260 43B260 Plastic Dvice by 20Khz Converter

Description:

Replacement Dukane 20 kHz 110-3122 converter. Standard on Ultra Series systems heavy-duty series press and thruster systems utilizing model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster.

Ultrasonic transducer is an energy conversion device whose function is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and then pass it out, while it consumes a small amount of power (less than 10%). Therefore, the most important consideration for using ultrasonic transducers is the matching with the input and output terminals, followed by the mechanical mounting and mating dimensions. There are many types of ultrasonic machinery on the market, and customers must provide accurate and reliable indicators to ensure that the ultrasonic transducer products provided by the company can be matched with your company's ultrasonic machines to achieve the best performance.

Specifications:

Ultrasonic transducer operating temperature:

Ultrasonic transducers generate heat when used, which is mainly caused by three causes. One is that the material to be heated or ultrasonically treated by the workpiece will heat up, or the mold (tool head) and the horn will heat up for a long time, and this heat will be transferred to the transducer. The second is the power loss of the transducer itself. Since the energy conversion efficiency is not 100%, the energy lost is inevitably converted into heat. The temperature rise will cause the ultrasonic transducer parameters to change, and gradually shift to the best matching state. What is more serious is that the temperature rise will cause the performance of the piezoelectric ceramic wafer to deteriorate. This in turn causes the ultrasonic transducer to work worse and heat up more quickly, which is a vicious circle. Therefore, we must give the ultrasonic transducer a good cooling condition, usually at room temperature and air cooling; if necessary, cold air cooling can also be used. Under normal conditions, the temperature rise caused by these two points is also normal, and under normal cooling conditions, there will be no major problems.
