Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W70D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.m Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| Highlight: | ultrasonic bonding machine,portable ultrasonic welder |
||

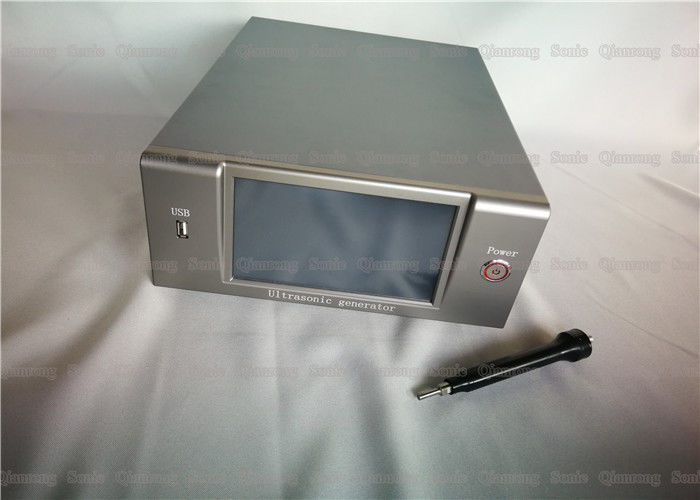

High Frequency 70Khz 50W Ultrasonic Copper Antenna Welding Machine
Description:
The ultrasonic embedding device penetrates the wire to be implanted into the hole of the head of the embedding device, places the head (welding surface) of the embedding device on the plastic thin plate, activates the ultrasonic device, and performs the routing and embedding. Completed during the routing process. When the line is finished, the entire welding process is also completed.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 5M |
| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Advantage:
Ordinary ultrasonic embedding device, with the wear of the wire bonding tool head, the frequency will inevitably change constantly (the product size determines the product frequency). When the frequency changes to a certain extent, the generator will find it difficult to find the frequency of the tool head, thus affecting the whole The normal operation of the ultrasonic system, this time only the replacement of the new wire tool head.
Compared with the traditional embedding device, the ultrasonic embedding device has greatly improved the Qiangeng brand ultrasonic embedding device. The improved ultrasonic embedding device has greatly improved product performance, stable operation and stronger automatic frequency matching capability. The appearance is also more beautiful. This problem has been solved to a large extent. Even if the tool head has a certain degree of wear, the generator can automatically search for and find the change of the ultrasonic vibration sub-frequency, thus ensuring the stable operation of the entire ultrasonic system, and the service life of the tool head will be extended. -3 times, really cost-effective for the majority of users. It is 30% larger than the traditional ultrasonic embedding device, and solves the problem of ultrasonic generator and vibrator heating, and can work for a long time.
High Frequency 70Khz 50W Ultrasonic Copper Antenna Welding Machine
