Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-3035-4BZ-BJL |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Oscillator | Output Power: | 700w |
|---|---|---|---|
| Frequency: | 35khz | Ceramic Disc Diameter: | 30mm |
| Qty Of Ceramic Discs: | 4pcs | Capacitance: | 5.5-6.2nf |
| Highlight: | small ultrasound transducer,ultrasonic vibration transducer |
||

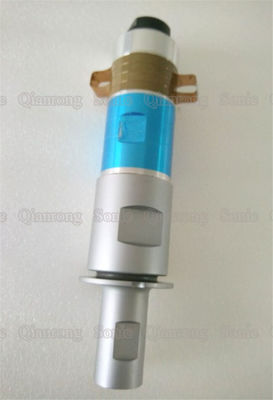

35Khz Column Type Ultrasonic Welding Transducer with Aluminum Booster
Description:
Ultrasonic vibrator is an energy conversion device, and its performance description and evaluation requires many parameters. The characteristic parameters of the transducer include resonance frequency, frequency bandwidth, electromechanical coupling coefficient, electroacoustic efficiency, mechanical quality factor, impedance characteristics, frequency characteristics, pointing Sex, emission and receiving sensitivity, etc. Ultrasonic vibrators for different applications have different performance parameters. For example, for an emissive transducer, the transducer is required to have large output power and high energy conversion efficiency; Transducers require a wide frequency band and high sensitivity and resolution. Therefore, in the specific design process of the ultrasonic vibrator, the relevant parameters of the transducer must be rationally designed according to the specific application.
Specifications:
| Model | QR-3035-4BZ-BJL |
| Frequency | 35khz |
| Output power | 700 watt |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 5.5-6.2nf |
| Application | Ultrasonic Plastic Welding machine |
Application of Ultrasonic Technology:
1. Applicable to ultrasonic plastic welding machine, plastic hot plate welding machine and high frequency plastic welding machine for plastic toys, electronics, household appliances, household plastic products, plastic stationery, auto parts and other industries. In addition to the 20KHZ universal series, the ultrasonic plastic welding machine also produces 15KHz series which are specially designed to deal with soft materials such as PP and PE, and need to be connected to the workpiece with large diameter and long width. The power is from 1000W to 4200W, which can meet the requirements of different users.
2. Ultrasonic washing machine for metal mechanical parts, bearings, pneumatic components, electronic devices, optical devices, medical devices, gold and silver jewelry and parts before plating. Power from 100W to 5000W, can also be designed according to user needs for trough, immersion, heating and high-density, low-frequency and other non-standard special models.
3. Ultrasonic lace dissolving machine and ultrasonic kneading machine for textile, garment and craft jewelry industry are a new production process of the industry, which helps the industry to improve the product grade.
4. There are also ultrasonic portable plastic welding machines, ultrasonic plastic hose sealing machines, ultrasonic drilling machines, ultrasonic frequency correction generators, plastic inner page folding machines and organ holders for various industries. Special machines such as molding machines.
35Khz Column Type Ultrasonic Welding Transducer with Aluminum Booster
