Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2010-PL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Planar Indium Ultrasonic Coating Machine | Frquency: | 20Khz |
|---|---|---|---|
| Max Power: | 1000W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-20μm | Input Voltage: | 20V± 10%，50/60Hz，4A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| Highlight: | Metal Surface Indium Coating Machine,Target Welding Machine 20Khz,Target Ultrasonic Indium Coating |
||
Indium Coating Machine Target Welding Machine 20Khz Metal and Non Metal Surface Coating Indium Technology
Description:
Indium coating machine, also known as target welding machine, is a traditional technique for manually coating indium on metal and non-metal surfaces such as copper plates, ITO glass, and silicon dioxide. It is mainly used for surface coatings on flat surfaces, inner holes, and outer circles, replacing outdated manual scraping techniques.
Disadvantages of manual indium coating:
1. Uneven indium coating can lead to ineffective use of the coated material;
2. Due to the manual scraping method used, the indium coating may become unstable and prone to detachment;
3. The efficiency of manual scraping and coating is very low, which consumes a lot of manual labor;
4. Due to control or other reasons, it can lead to the waste of indium metal.
Our ultrasonic technology has effectively solved these problems.
Parameters:
| Product Type | Planar Indium Coating | Inner Hole Indium Coating | Outer Circle Coated with Indium | |
| Rated Power | 100-1000W | 500-2500W | 300-1500W | |
| Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
| Temperature Range | 150-400℃ | |||
| Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
| Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
| Indium Coated Head Material | Titanium Alloy (other materials can be customized) | |||
| Working Mode | Intermittent/Continuous switchable | |||
| Control Mode | Manual Button or External Control | |||

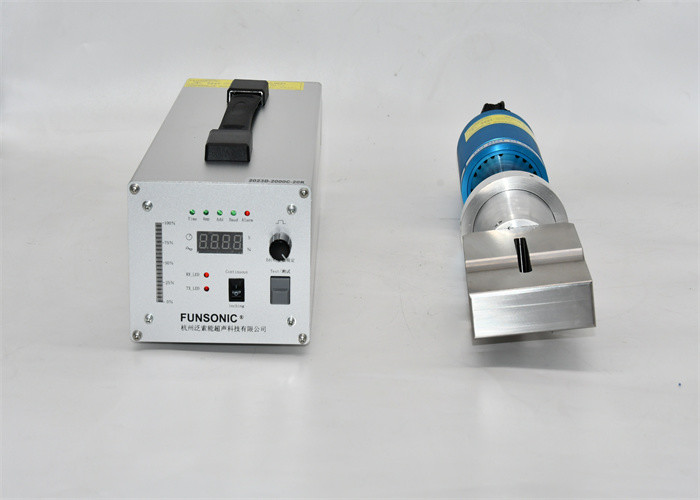

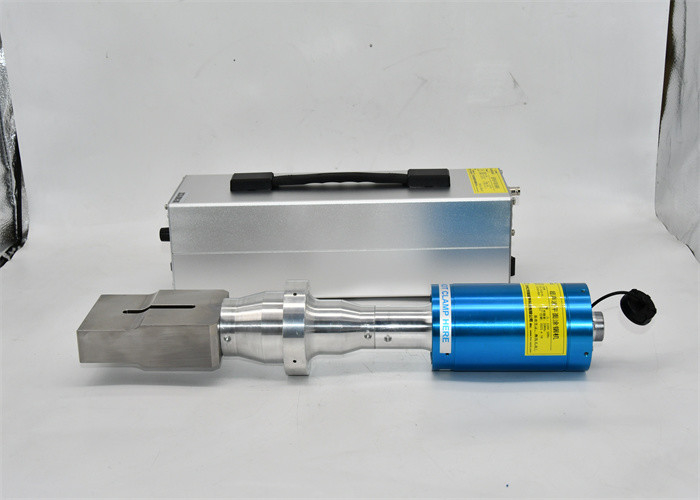

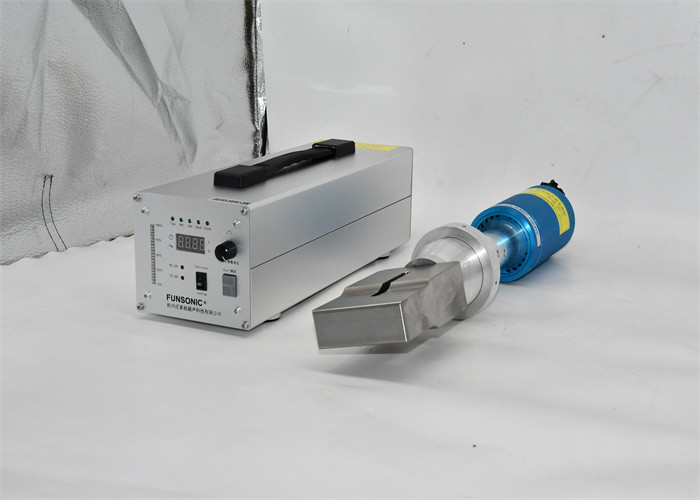

| Composition Accessories | Ultrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc | |||
| Ultrasonic Generator | Size | 180*120*360mm | ||
| Weight | 5kg | |||
| Characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||
| Vibration Head Size | Φ16cap shaped round head,50*10mmsquare head | 50*30mm(inner diameter of curved fitting pipe) | 80*20mm (outer diameter of curved fitting pipe) | |
| Processable Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
| Application Direction | Flat, inner hole, outer circle, etc | |||
Application:
Electronic component welding (without flux welding)
Welding electrical and electronic products made of aluminum (or copper) magnetic wires
Helpless flux
Battery electrode welding
Welding other difficult to weld non-ferrous metal products
